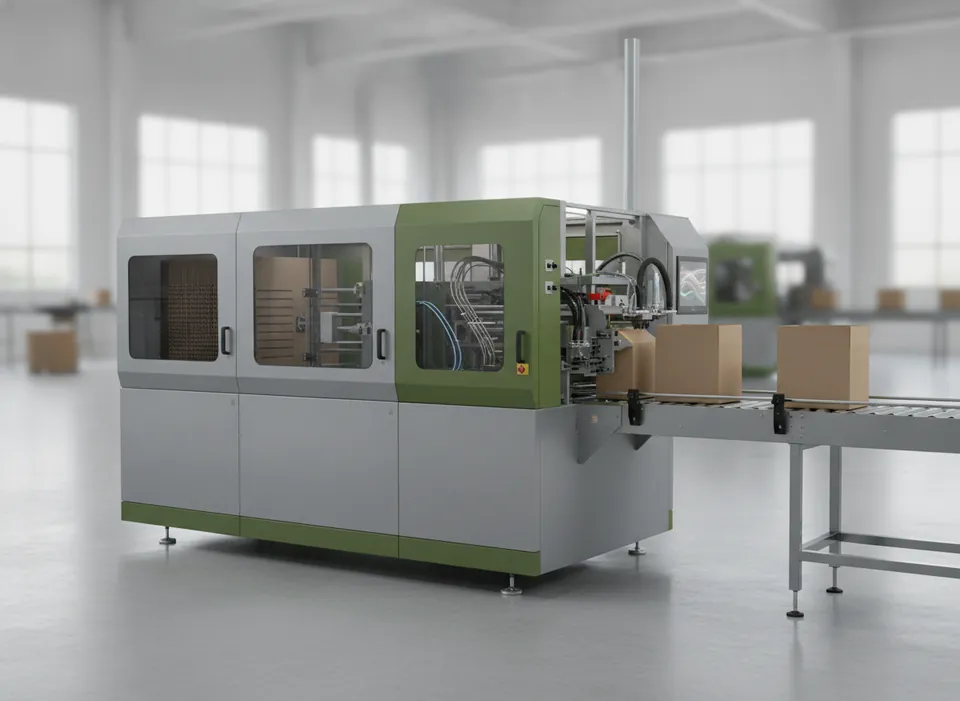

High-Speed Hot-Melt Case Erector
Servo erecting and glue sealing at 25 cases a minute.
Built around your product
A servo-driven case opener and hot-melt bottom sealing give high speed with secure, recyclable closure. Powered magazine loading keeps pace with fast automatic packing lines.
Side or top-and-bottom belts drive the case through fixed tape heads that apply, wipe and cut pressure-sensitive tape. Uniform machines are set by hand-wheel for one size at a time; random machines sense each case and adjust width and height automatically. Erectors pick a blank from the magazine with vacuum cups, square it, fold the bottom flaps and seal them with tape or hot melt.
Key features
- Servo case opening for consistent squareness
- Hot-melt system with pattern control
- Powered horizontal magazine
- Recipe-based size change in minutes
Process sequence
Feed
Packed cases arrive on the infeed rollers, or blanks load into the magazine.
Size
Belts and top head adjust to the case — by hand-wheel or automatically.
Fold
Flap folders close the top flaps (automatic models).
Seal
Tape heads or glue guns seal top, bottom or both.
Discharge
Sealed cases exit to coding, labelling and palletizing.
Machine video
A closer look at a typical carton sealers & erectors installation. Ask us for a live demonstration of the CE-25H on your own product.
Specifications
| Model | CE-25H |
|---|---|
| Carton size (L × W × H) | L 250–550 × W 180–400 × H 150–400 mm |
| Speed | Up to 25 cases/min |
| Tape width | Hot-melt adhesive (tape optional) |
| Drive | Servo erect, belt discharge |
| Size adjustment | Motorised with recipe recall |
| Table height | 650–750 mm discharge height |
| Power supply | 380 V three phase, 5 kW |
| Air supply | 6 bar, 500 L/min |
Typical configuration. Final values depend on your product and are confirmed in the quotation.
Add-ons
- Stainless steel frame
- Low-tape and broken-tape alarm
- Infeed and outfeed roller conveyors
- Inline case coder or labeller
Suitable materials and packs
Questions
Uniform or random case sealer?
Tape or hot melt?
Side-belt or top-and-bottom drive?
Get a proposal for this machine
- Application review by an engineer — material, code and line speed
- Trial marking, printing or packing on your own samples
- Quotation with layout, lead time, installation and service
Prefer to talk? Email info@motionworksrobotics.com or call +91 98100 93680.
