Shrink Packaging Machines
L-bar, side-seal and sleeve wrappers with shrink tunnels for retail packs and multipacks.
Also called shrink wrappers, L-sealers, sleeve wrappers and shrink tunnels.
What these machines do
Shrink film gives a tight, tamper-evident wrap around a single product or bundles several into a multipack that needs no tray. Machines range from one-step chamber units to continuous side-sealers and bottle bundlers.
The product is enveloped in centre-folded or flat film and the open edges are sealed by a hot knife or impulse wire. In the tunnel, recirculated hot air shrinks the film evenly around the product. Polyolefin is used for retail display packs; polyethylene for heavier transit bundles.
Typical options
- Automatic collating infeed
- Print-registered film control
- Tray or pad feeder
- Cooling conveyor
Used in
Works on
Shrink Packaging at work
A closer look at a typical installation. Ask us for a live demonstration on your own product.
Shrink Packaging Machines
Automatic L-Bar Sealer with Shrink Tunnel
Wraps boxes, trays and bundles in polyolefin film.

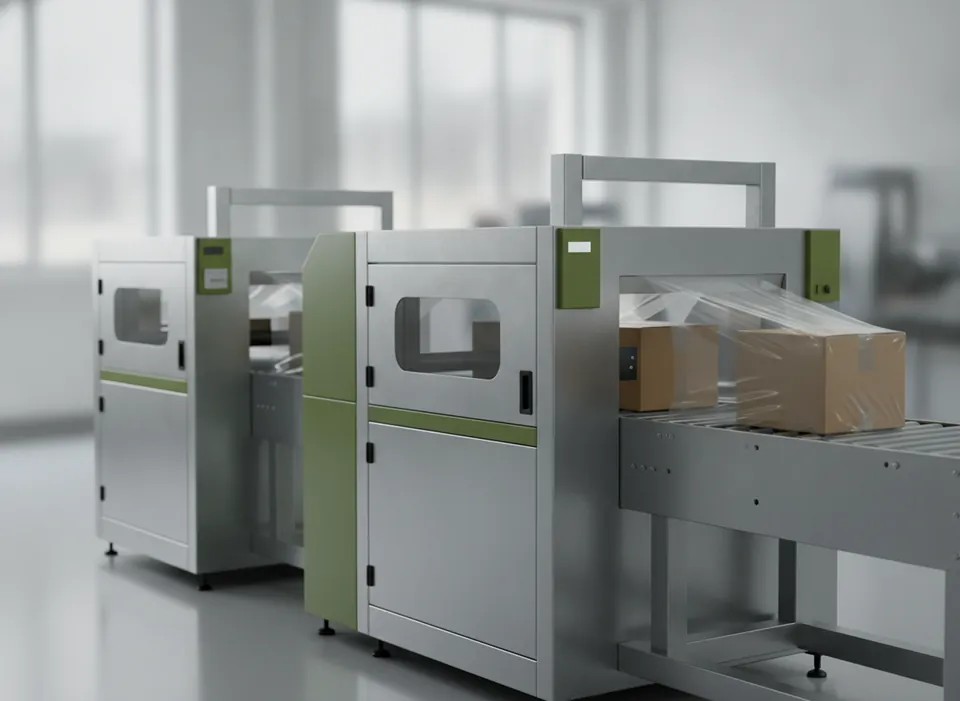

Continuous Side-Seal Shrink Wrapper
High-speed wrapping with unlimited pack length.

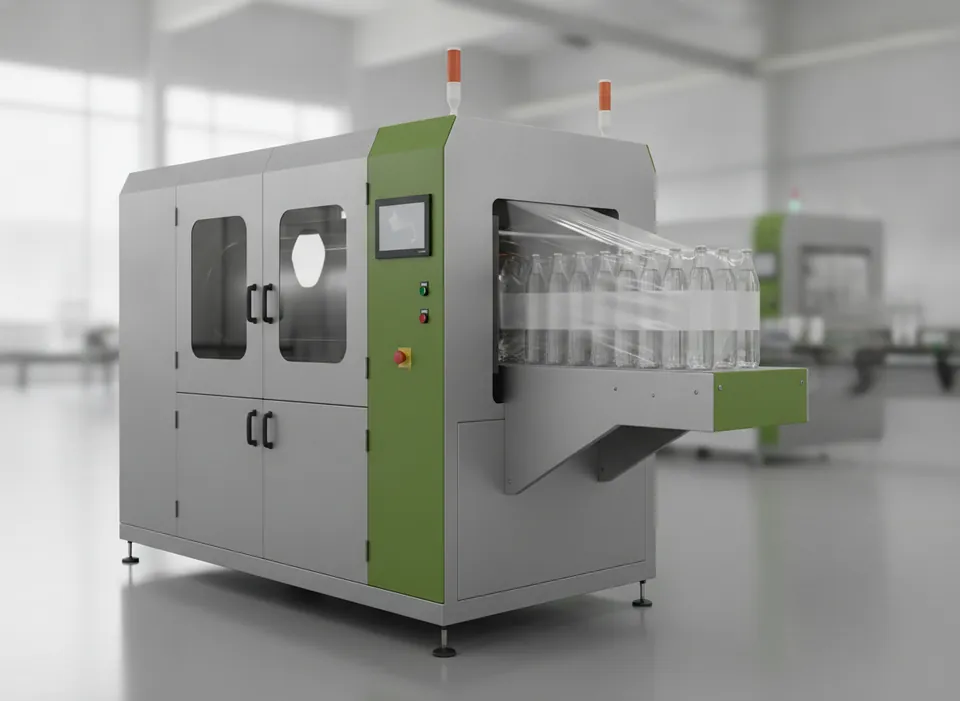

Sleeve Wrapper & Shrink Bundler
PE-film multipacks of bottles, cans and jars.

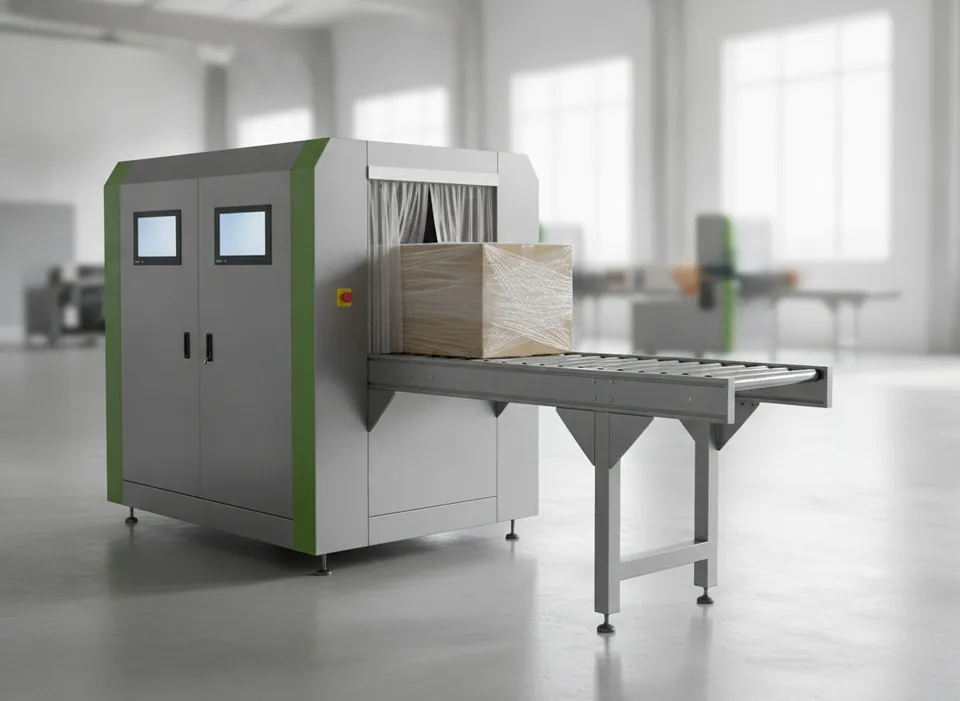

Shrink Tunnel
Standalone recirculating hot-air tunnel.
Chamber Shrink Wrapping Machine
One-step seal and shrink for low volumes.
Models at a glance
| Model | Machine | Sealing type | Max pack size | Speed | Film |
|---|---|---|---|---|---|
| SW-L45 | Automatic L-Bar Sealer with Shrink Tunnel | Automatic L-bar, PTFE-coated knife | 450 × 350 × 150 mm | Up to 30 packs/min | POF centre-fold, 12–30 µm |
| SW-S60 | Continuous Side-Seal Shrink Wrapper | Continuous side seal, box-motion cross seal | 600 mm wide × 200 mm high, unlimited length | Up to 60 packs/min | POF or PE centre-fold, 12–40 µm |
| SW-SL50 | Sleeve Wrapper & Shrink Bundler | Sleeve seal bar, two-reel | 500 × 350 × 350 mm bundle | Up to 15 bundles/min | PE, 40–100 µm |
| SW-T45 | Shrink Tunnel | Tunnel only | 450 × 220 mm product section | 0–15 m/min conveyor | POF, PVC, PE |
| SW-C25 | Chamber Shrink Wrapping Machine | Hood type, seal and shrink in one cycle | 500 × 380 × 200 mm | Up to 6 packs/min | POF or PVC centre-fold, 12–25 µm |
Typical configurations. Final values are confirmed in your quotation.
Process sequence
Infeed
Products are spaced or collated into the pack pattern.
Wrap
Film is drawn around the product from one or two reels.
Seal
An L-bar, side-seal or cross-seal jaw closes and trims the film.
Shrink
The tunnel heats the film to its shrink temperature.
Cool
A cooling fan sets the film before discharge.
Common questions
POF, PE or PVC film?
L-sealer or side-sealer?
Why do packs show “dog ears”?
Tell us about your product
Send a sample, a drawing or just a description. We will recommend the right machine and show you the result.
