Continuous Inkjet (CIJ) Printers
Non-contact small-character coding on almost any surface, flat or curved, at high line speeds.
Also called CIJ coders, small-character inkjet printers and batch coding machines.
What these machines do
Continuous inkjet is the workhorse of date and batch coding. It prints from a distance onto curved, recessed, wet or moving surfaces and offers the widest choice of inks — fast-dry, food-grade, pigmented, heat-resistant and more.
Ink is pumped under pressure through a nozzle and broken into a steady stream of droplets by a piezo crystal. Selected drops receive an electrical charge and are deflected by a high-voltage plate onto the product to form characters; uncharged drops return to the gutter and are recycled. Solvent make-up keeps viscosity constant across temperature changes.
Typical options
- Positive-air printhead kit for dusty lines
- Right-angle or extended umbilical
- Beacon and product-reject outputs
- Stainless stand with traversing arm
Used in
Works on
Continuous Inkjet (CIJ) at work
A closer look at a typical installation. Ask us for a live demonstration on your own product.
Continuous Inkjet (CIJ) Printers
Entry-Level CIJ Printer
Straightforward date and batch coding for single-shift lines.
Mid-Range CIJ Printer
Five-line printing and networking for multi-shift production.
High-Speed CIJ Printer
Built for canning, bottling and extrusion at full speed.
Pigmented-Ink CIJ Printer
High-contrast white, yellow and silver codes on dark surfaces.
Washdown CIJ Printer for Food
Hygienic IP66 design with food-grade and MEK-free inks.

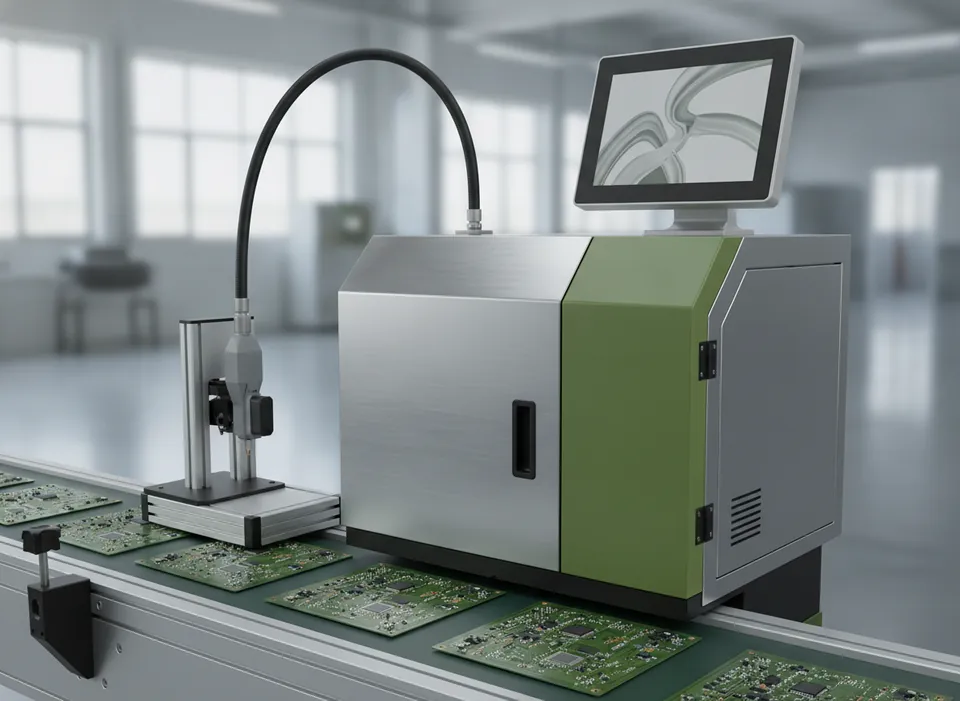

Micro-Character CIJ Printer
Legible 0.6 mm characters for components and small packs.
Models at a glance
| Model | Machine | Print lines | Character height | Max line speed | Nozzle size |
|---|---|---|---|---|---|
| CJ-310 | Entry-Level CIJ Printer | 1–3 | 1.5–10 mm | 180 m/min (single line) | 60 µm |
| CJ-520 | Mid-Range CIJ Printer | 1–5 | 1.2–12 mm | 280 m/min (single line) | 60 µm (50 / 70 µm optional) |
| CJ-760 | High-Speed CIJ Printer | 1–5 | 1.2–10 mm | 480 m/min (single line) | 50 µm |
| CJ-760P | Pigmented-Ink CIJ Printer | 1–4 | 1.5–12 mm | 250 m/min (single line) | 70 µm |
| CJ-880F | Washdown CIJ Printer for Food | 1–5 | 1.2–12 mm | 300 m/min (single line) | 60 µm |
| CJ-900M | Micro-Character CIJ Printer | 1–4 | 0.6–7 mm | 200 m/min (single line) | 40 µm |
Typical configurations. Final values are confirmed in your quotation.
Process sequence
Start
Automatic nozzle flush and jet alignment bring the printer to ready.
Sense
A product sensor triggers the print; the encoder matches character width to speed.
Charged drops fly 5–15 mm to the surface and dry in about a second.
Recycle
Unused ink returns through the gutter to the mixing tank.
Shut down
The printhead cleans and seals itself for a clean next start.
Common questions
How many lines can a CIJ printer print?
What maintenance does CIJ need?
Can CIJ print on dark surfaces?
Tell us about your product
Send a sample, a drawing or just a description. We will recommend the right machine and show you the result.
