Filling & Capping Machines
Piston, gravity, auger and tube fillers with inline capping for liquids, creams and powders.
Also called liquid filling machines, powder fillers, tube fillers and bottle cappers.
What these machines do
Accurate filling protects margin and compliance; reliable capping protects the product. This family covers thin liquids to thick pastes and free-flowing powders, in bottles, jars and tubes, from semi-automatic benches to monoblock lines.
The filling principle follows the product. Piston fillers meter viscous products by cylinder volume. Gravity and overflow fillers suit thin, foaming liquids and give a consistent cosmetic fill level. Auger fillers dose powders by screw rotation. Cappers then place and tighten screw, press-on or pump closures to a set torque.
Typical options
- CIP-ready product path
- Diving and bottom-up fill nozzles
- Cap elevator and sorter
- Nitrogen flush before capping
Used in
Works on
Filling & Capping at work
A closer look at a typical installation. Ask us for a live demonstration on your own product.
Filling & Capping Machines

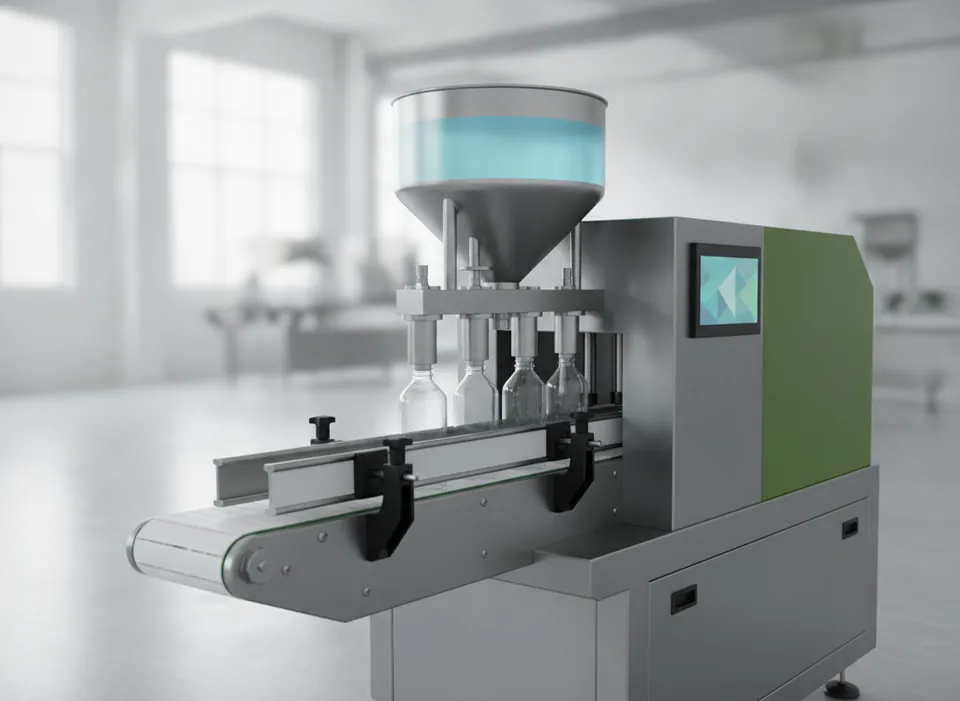

4-Head Piston Filling Machine
Volumetric filling for sauces, creams, gels and oils.

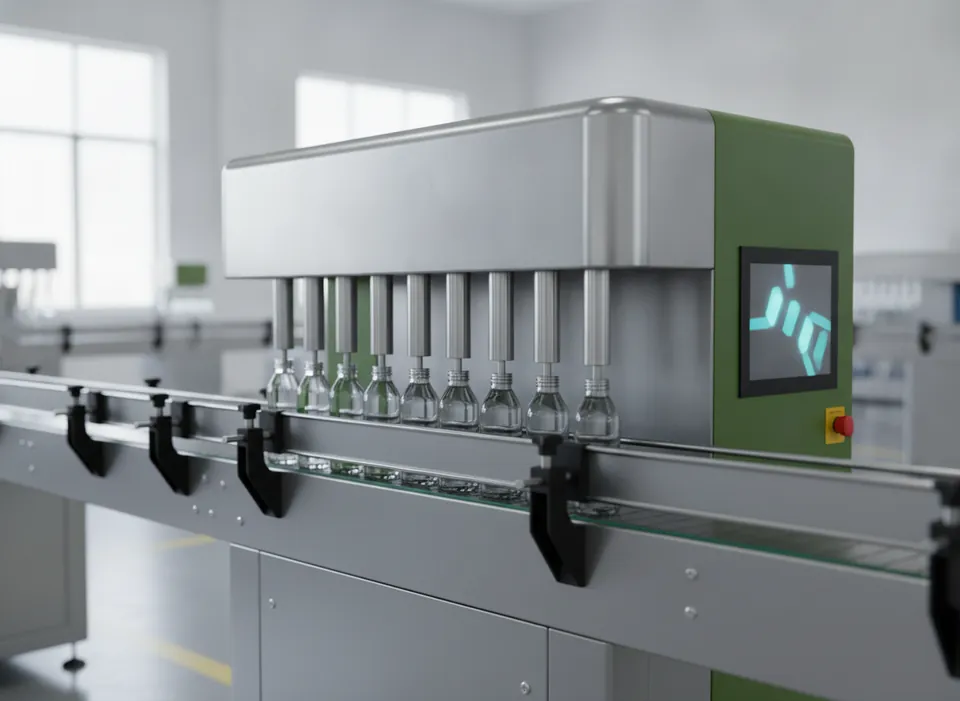

8-Head Gravity Overflow Filling Machine
Consistent fill level for thin and foaming liquids.

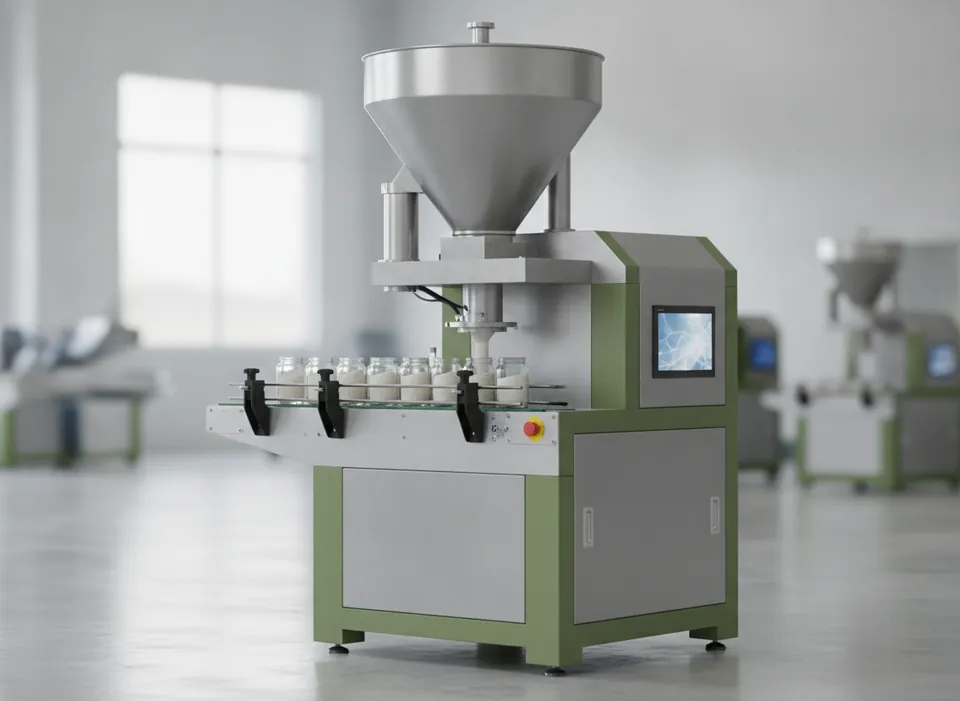

Auger Powder Filling Machine
Accurate dosing of powders and granules into jars and bottles.

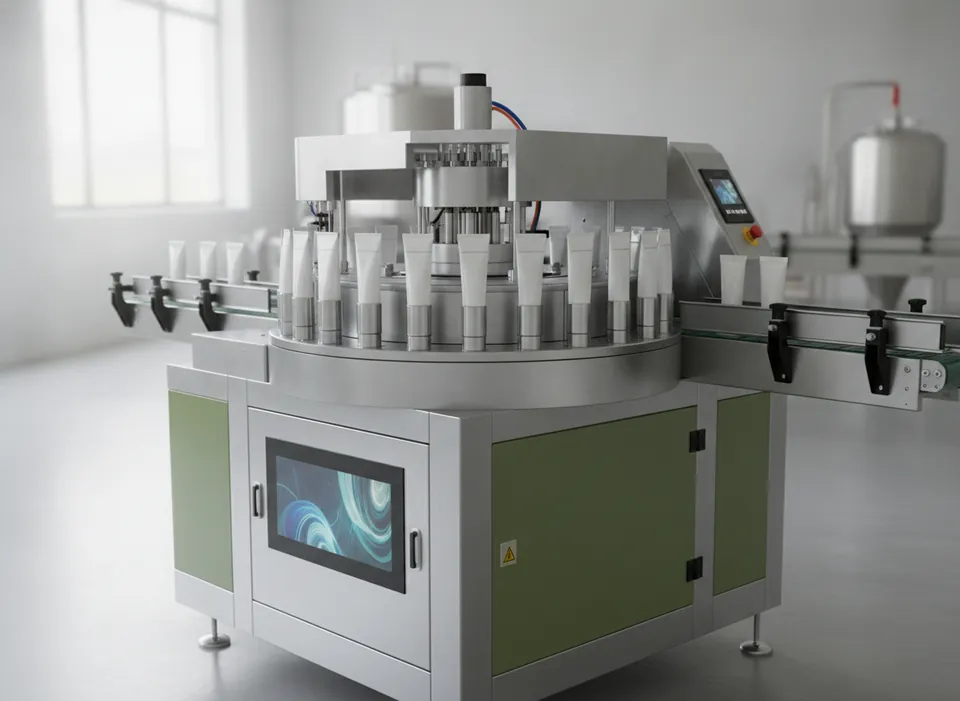

Tube Filling & Sealing Machine
Fills and seals plastic, laminate and aluminium tubes.
Inline Spindle Capping Machine
Tightens screw caps continuously without stopping the bottle.

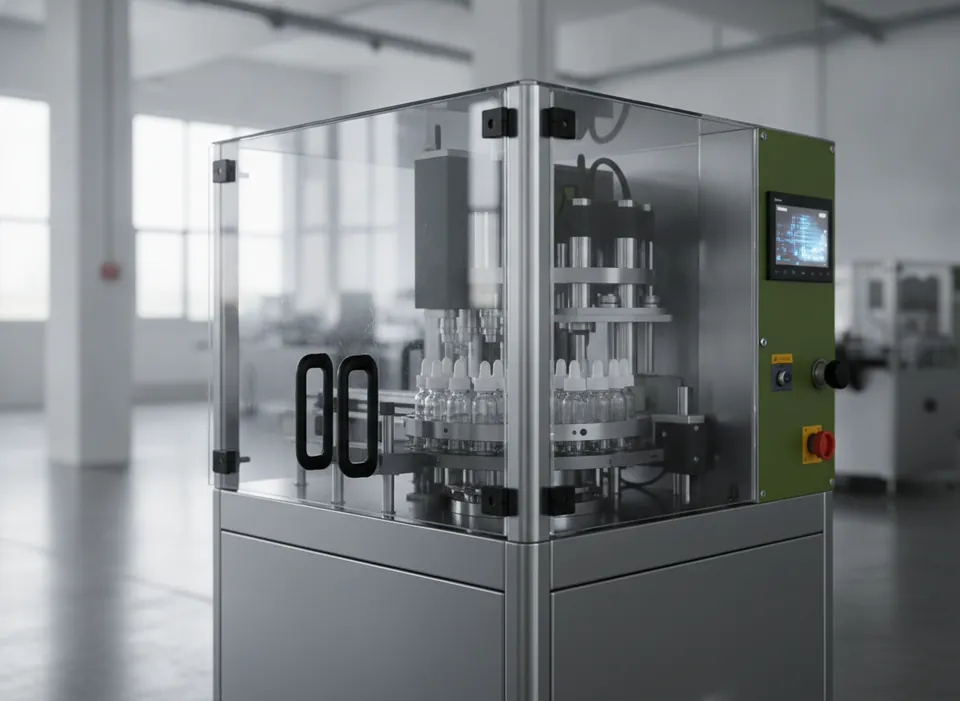

Monoblock Filling, Plugging & Capping Machine
Compact rotary monoblock for small bottles and vials.
Models at a glance
| Model | Machine | Filling principle | Fill range | Heads | Output |
|---|---|---|---|---|---|
| FC-P4 | 4-Head Piston Filling Machine | Servo piston, volumetric | 50–1,000 ml (other ranges available) | 4 (2–12 optional) | Up to 2,400 bottles/hour at 500 ml |
| FC-G8 | 8-Head Gravity Overflow Filling Machine | Gravity / overflow, fill-to-level | 100–5,000 ml | 8 (4–16 optional) | Up to 4,000 bottles/hour at 500 ml |
| FC-A2 | Auger Powder Filling Machine | Servo auger, volumetric or gravimetric | 10–5,000 g (by auger tooling) | 1 (2 optional) | 20–40 containers/min |
| FC-T60 | Tube Filling & Sealing Machine | Piston, bottom-up tube filling | 5–250 ml | 1 filling station, 12-position table | Up to 60 tubes/min |
| FC-C1 | Inline Spindle Capping Machine | Spindle capper, continuous motion | Cap Ø 18–70 mm | 4 pairs of spindle wheels | Up to 150 bottles/min |
| FC-M3 | Monoblock Filling, Plugging & Capping Machine | Peristaltic or ceramic piston pump | 2–100 ml | 2 filling heads, 1 plug, 1 cap | Up to 60 bottles/min |
Typical configurations. Final values are confirmed in your quotation.
Process sequence
Feed
Containers are unscrambled and spaced on the conveyor.
Index
Gates or a starwheel position containers under the nozzles.
Fill
Nozzles dive, dose and retract with anti-drip cut-off.
Cap
Closures are sorted, placed and torqued.
Code
A laser or inkjet coder marks date and lot before labelling.
Common questions
Which filler suits viscous products?
How is fill accuracy expressed?
Can filling and capping be combined?
Tell us about your product
Send a sample, a drawing or just a description. We will recommend the right machine and show you the result.
