Sealing & Vacuum Packaging Machines
Band sealers, chamber vacuum machines, tray sealers and thermoformers for extended shelf life.
Also called band sealers, vacuum sealers, tray sealers and thermoformers.
What these machines do
A good seal is the last defence of shelf life. This range closes filled bags continuously, removes air under vacuum, seals lidding film to trays with or without modified atmosphere, and forms packs from rollstock.
Continuous band sealers carry the bag mouth between heated bars and cooling blocks while a conveyor supports the bag. Chamber machines evacuate air around the product, optionally back-flush with gas, then seal. Tray sealers and thermoformers use a tool to seal top film to a tray or formed pocket and trim it to shape.
Typical options
- Gas flush (MAP)
- Emboss or ink date coding on the seal
- Nitrogen-flush band sealing
- Stainless washdown build
Used in
Works on
Sealing & Vacuum Packaging at work
A closer look at a typical installation. Ask us for a live demonstration on your own product.
Sealing & Vacuum Packaging Machines
Continuous Band Sealer with Date Coder
Seals and codes pouches in one pass.
Vertical Band Sealer for Heavy Bags
Upright sealing for filled bags of 1–15 kg.

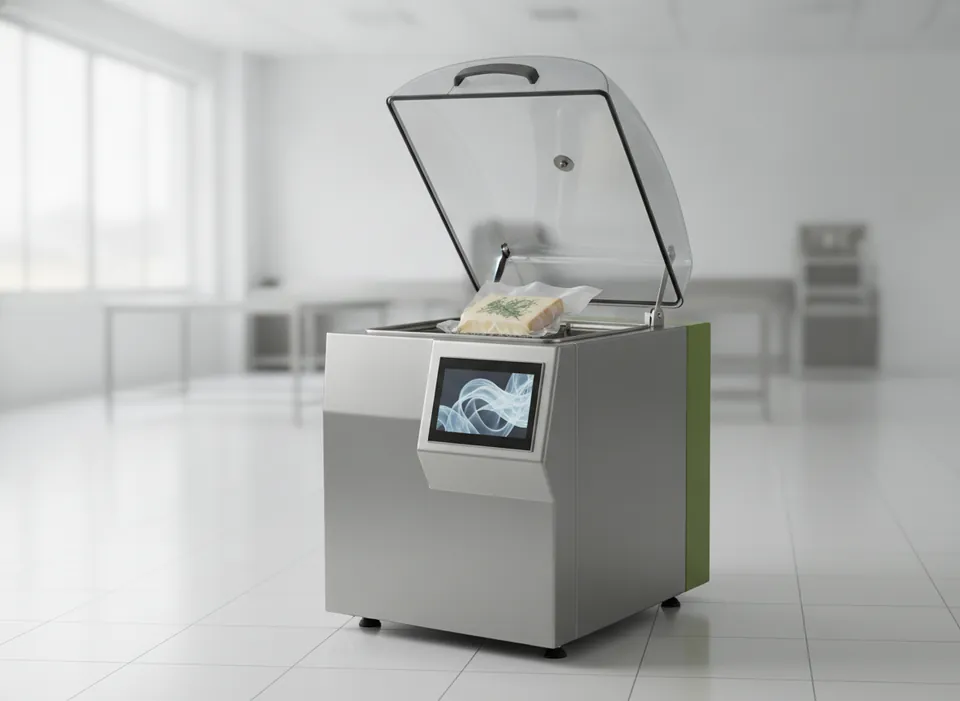

Single-Chamber Vacuum Packaging Machine
Floor-standing chamber machine for meat, cheese and components.

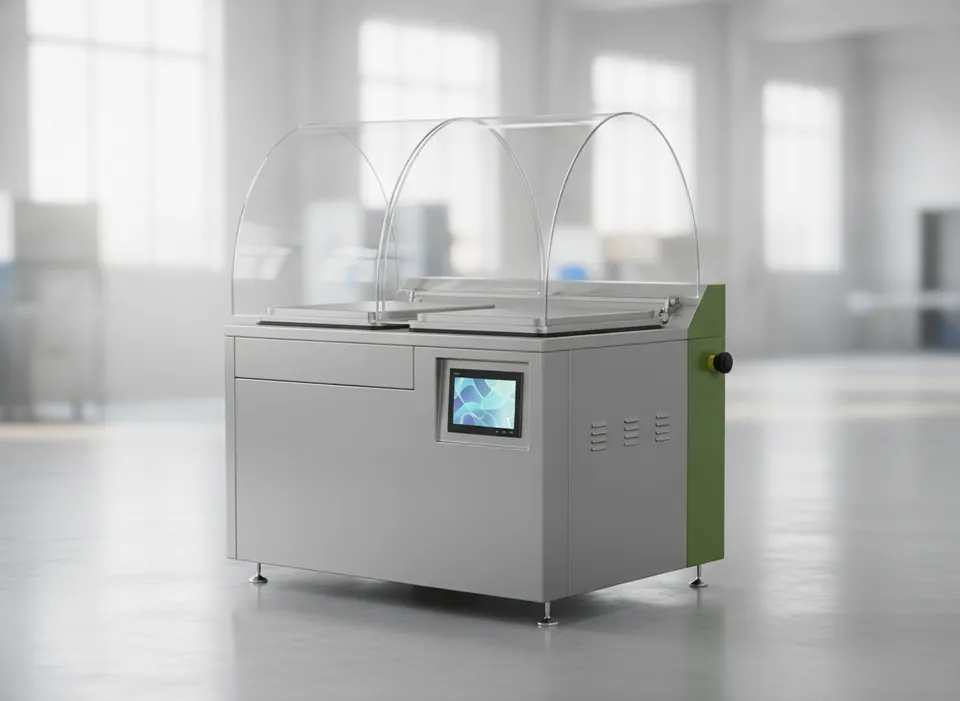

Double-Chamber Vacuum Packaging Machine
Swing-lid machine that doubles output per operator.

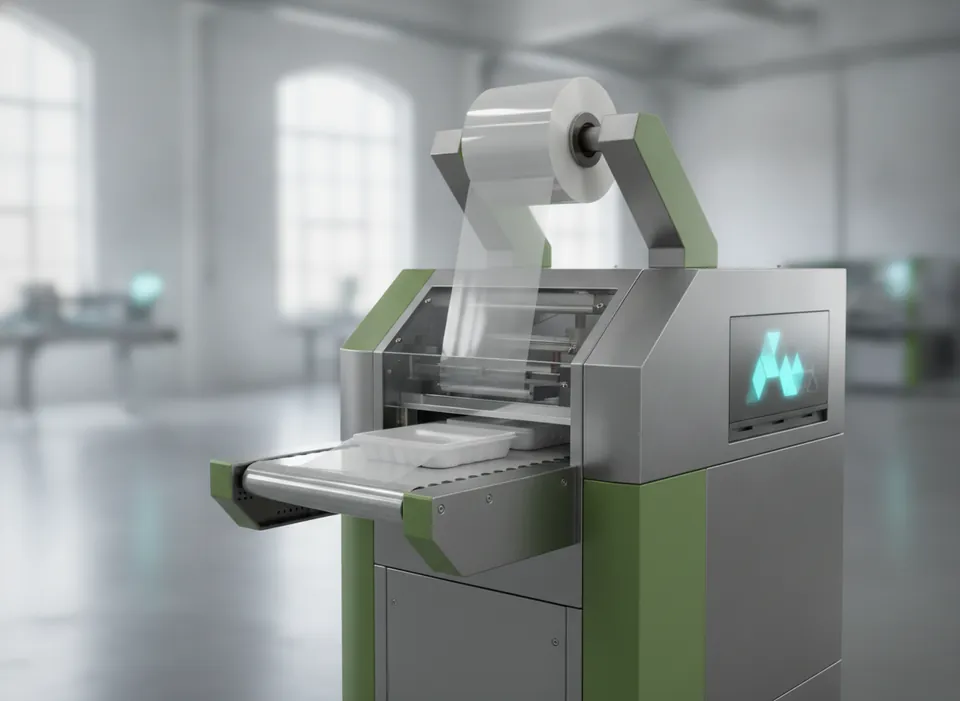

Tray Sealing Machine with MAP
Seals lidding film to preformed trays, with gas flush.

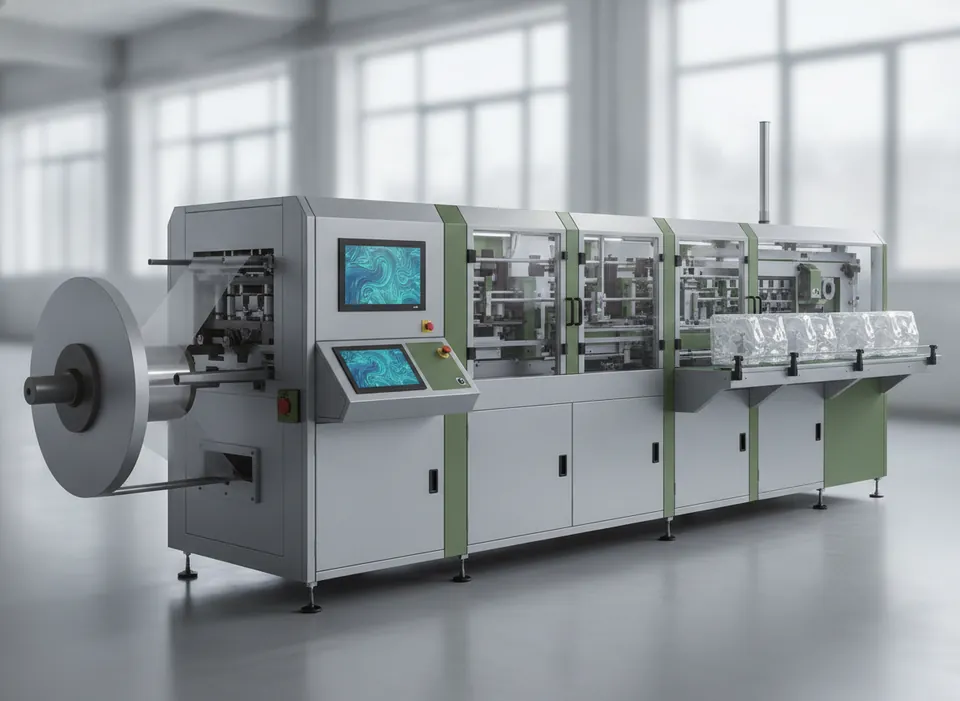

Thermoforming Packaging Machine
Forms, fills, seals and cuts packs from two film reels.
Models at a glance
| Model | Machine | Type | Seal size | Speed / cycle | Chamber / tray size |
|---|---|---|---|---|---|
| SV-B900 | Continuous Band Sealer with Date Coder | Horizontal continuous band sealer | 6–15 mm seal width, unlimited length | 0–16 m/min | Conveyor 900 × 180 mm, 5 kg load |
| SV-B1100V | Vertical Band Sealer for Heavy Bags | Vertical continuous band sealer | 10–15 mm seal width, unlimited length | 0–12 m/min | Bags 150–700 mm high, up to 15 kg |
| SV-V500 | Single-Chamber Vacuum Packaging Machine | Single chamber, lid type | 2 × 500 mm seal bars | 2–3 cycles/min | 520 × 500 × 180 mm chamber |
| SV-V2-600 | Double-Chamber Vacuum Packaging Machine | Double chamber, swing lid | 4 × 620 mm seal bars | 2–3 cycles/min per chamber | 2 × 700 × 620 × 220 mm chambers |
| SV-T300 | Tray Sealing Machine with MAP | Tray sealer, vacuum-gas or seal-only | Tool-dependent, film up to 320 mm wide | 5–8 cycles/min (2–4 trays per cycle) | Trays up to 370 × 270 × 100 mm |
| SV-TF420 | Thermoforming Packaging Machine | Rollstock thermoformer (vacuum, MAP or skin) | Film width 320–420 mm, forming depth to 120 mm | 6–12 cycles/min | Index 200–400 mm |
Typical configurations. Final values are confirmed in your quotation.
Process sequence
Load
Filled bags or trays are placed on the conveyor or in the chamber.
Evacuate
Vacuum pumps remove air to the set level (vacuum and MAP models).
Flush
Protective gas is injected where modified atmosphere is used.
Seal
Heat, pressure and dwell time fuse the sealing layers.
Cool & code
Seals are cooled and a date code is embossed or printed.
