Collaborative Robot Palletizer
Compact, fence-free palletizing cell on a mobile base.
Built around your product
A cobot on a lifting column palletizes cases onto two pallet positions, so the operator can swap a full pallet without stopping. The cell rolls to another line and is set up in under an hour.

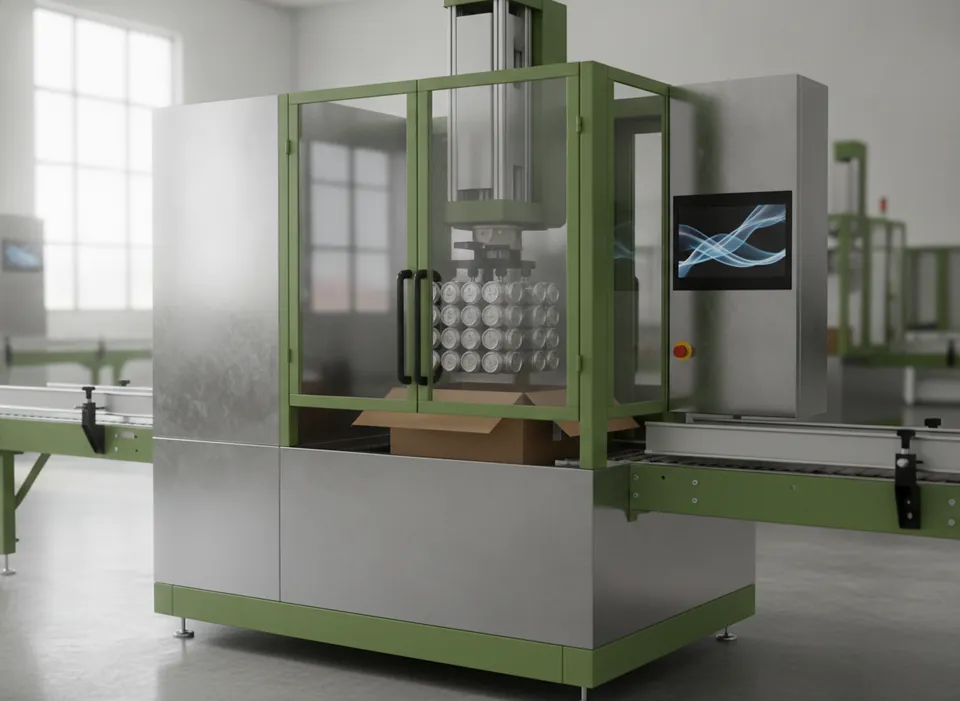

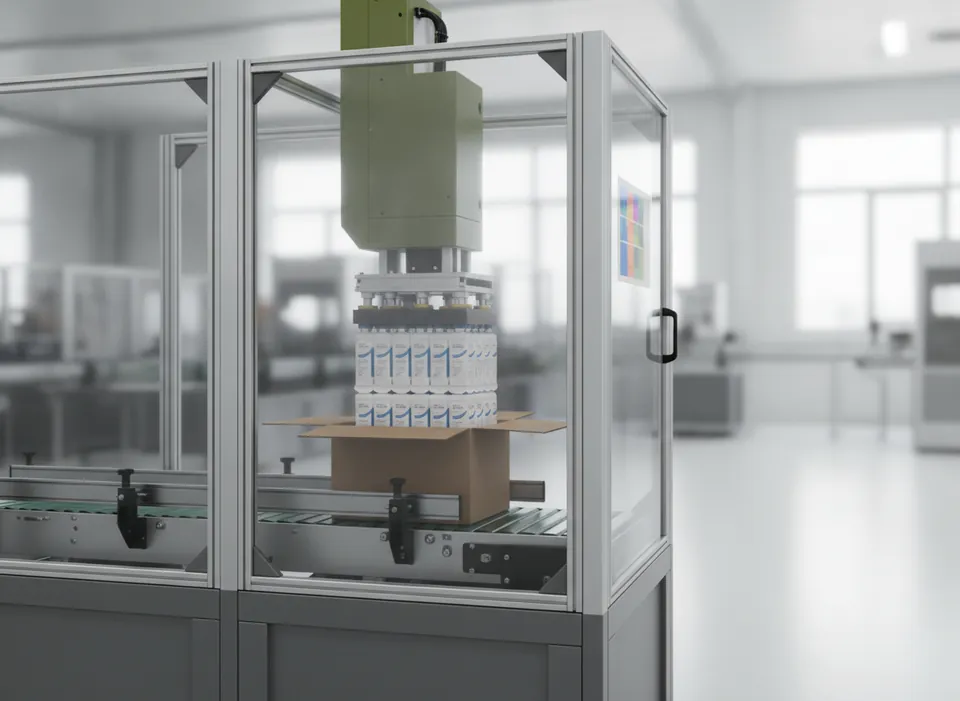

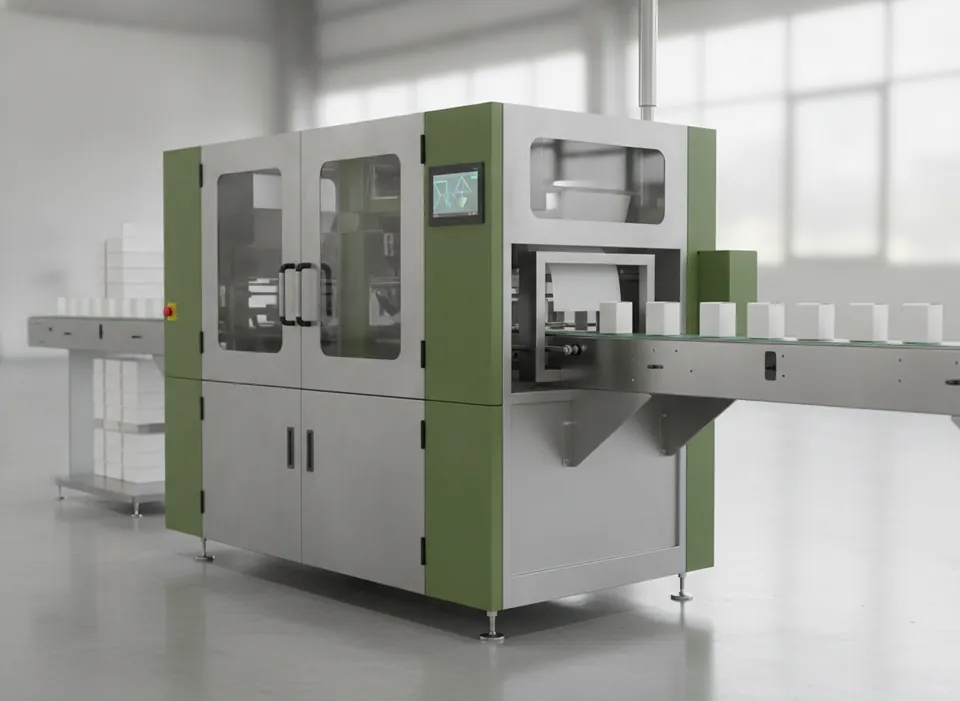

A cartoner erects a flat carton, inserts the product and leaflet, and closes the ends by tuck or hot melt. Case packers collate products and load them by pick-and-place, drop or wrap-around. Palletizers use a four-axis robot or a collaborative arm with a vacuum or clamp gripper to build the programmed layer pattern, adding slip sheets as needed.
Key features
- Area scanners instead of fencing
- Two-pallet non-stop operation
- Telescopic column for high stacks
- Relocatable with a pallet truck
Process sequence
Collate
Products are grouped into the pack pattern.
Erect
The carton or case is formed from a flat blank.
Load
A pusher or robot places the collation into the pack.
Close
Flaps are tucked, taped or glued and the pack is coded.
Palletize
A robot stacks cases to the pallet pattern.
Machine video
A closer look at a typical cartoning, packing & palletizing installation. Ask us for a live demonstration of the EL-CB10 on your own product.
Specifications
| Model | EL-CB10 |
|---|---|
| Function | Collaborative robot palletizer |
| Format range | Two pallet positions, stack to 2,000 mm with lift column |
| Speed | Up to 10 cases/min |
| Payload | Up to 20 kg including gripper |
| Changeover | Pattern wizard — no robot code |
| Control | Cobot controller with tablet HMI |
| Power supply | 220 V single phase, 1.5 kW |
| Air supply | 6 bar, 100 L/min |
Typical configuration. Final values depend on your product and are confirmed in the quotation.
Add-ons
- Leaflet inserter
- Vision-guided picking
- Automatic pallet and slip-sheet dispenser
- Area scanners for fence-free cobot cells
Suitable materials and packs
Questions
Cobot or industrial robot palletizer?
How long does a format change take?
Where is the pack coded?
Get a proposal for this machine
- Application review by an engineer — material, code and line speed
- Trial marking, printing or packing on your own samples
- Quotation with layout, lead time, installation and service
Prefer to talk? Email info@motionworksrobotics.com or call +91 98100 93680.
