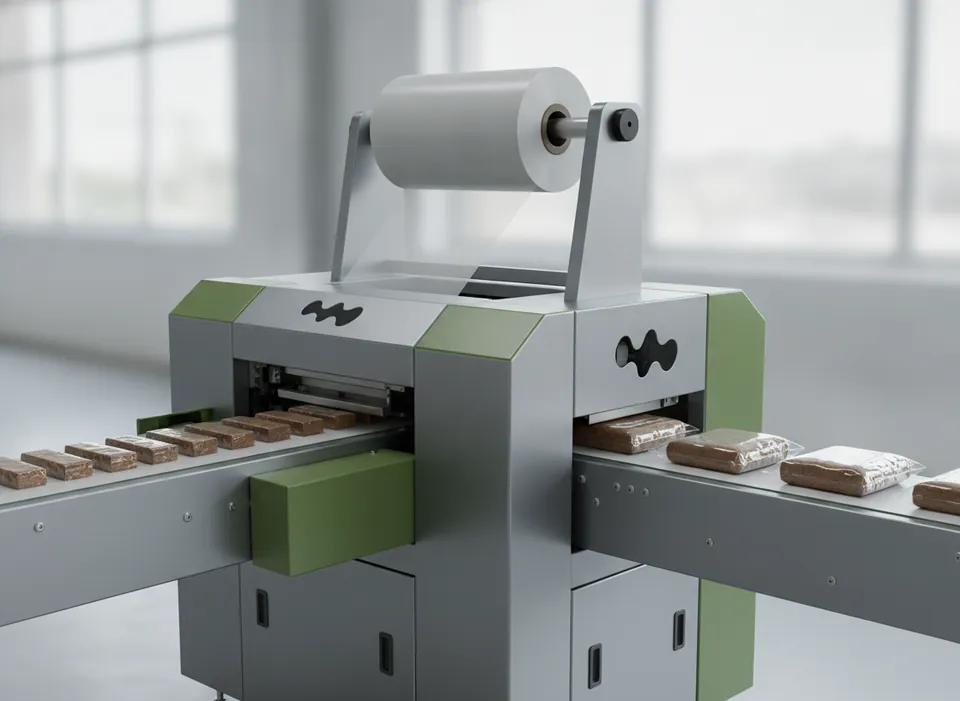

Horizontal Flow Wrapping Machine
Pillow packs for bars, biscuits, bakery and hardware.
Built around your product
Products are fed in a single file, wrapped in a film tube, fin-sealed underneath and cross-sealed by rotary jaws. Servo axes make length changes a recipe selection.
A vertical form-fill-seal machine pulls film over a forming collar to create a tube, seals the back and bottom, drops in the dose and seals the top while cutting the pack free. Rotary premade-pouch machines grip finished pouches and carry them through open, fill and seal stations. Flow wrappers do the same job horizontally for solid items.
Key features
- Three-servo control
- No-product, no-bag function
- Print-mark registration
- Top- or bottom-reel versions
Process sequence
Unwind
Film is unwound, tension-controlled and registered to the print mark.
Code
A TTO or laser prints date and lot on the moving web.
Form
The pouch is formed around a tube, or a premade pouch is opened.
Dose
A multihead weigher, auger or pump delivers the product.
Seal
Heated jaws seal and cut; packs discharge to the outfeed.
Machine video
A closer look at a typical pouch & form-fill-seal installation. Ask us for a live demonstration of the FP-H250 on your own product.
Specifications
| Model | FP-H250 |
|---|---|
| Bag style | Pillow pack, gusset optional |
| Bag size | 60–300 mm long, 30–110 mm wide, 5–60 mm high |
| Fill range | Single items or trays |
| Speed | Up to 200 packs/min |
| Packaging material | BOPP, laminates, cold-seal film |
| Dosing system | Lug-chain or belt infeed |
| Power | 220 V, 3 kW |
| Air consumption | Not required |
Typical configuration. Final values depend on your product and are confirmed in the quotation.
Add-ons
- Multihead weigher, auger or liquid pump
- Nitrogen flushing
- Zipper, valve or spout applicators
- Checkweigher and metal detector at outfeed
Suitable materials and packs
Questions
VFFS or premade pouch?
Which coder fits a form-fill-seal machine?
What decides the speed?
Get a proposal for this machine
- Application review by an engineer — material, code and line speed
- Trial marking, printing or packing on your own samples
- Quotation with layout, lead time, installation and service
Prefer to talk? Email info@motionworksrobotics.com or call +91 98100 93680.
