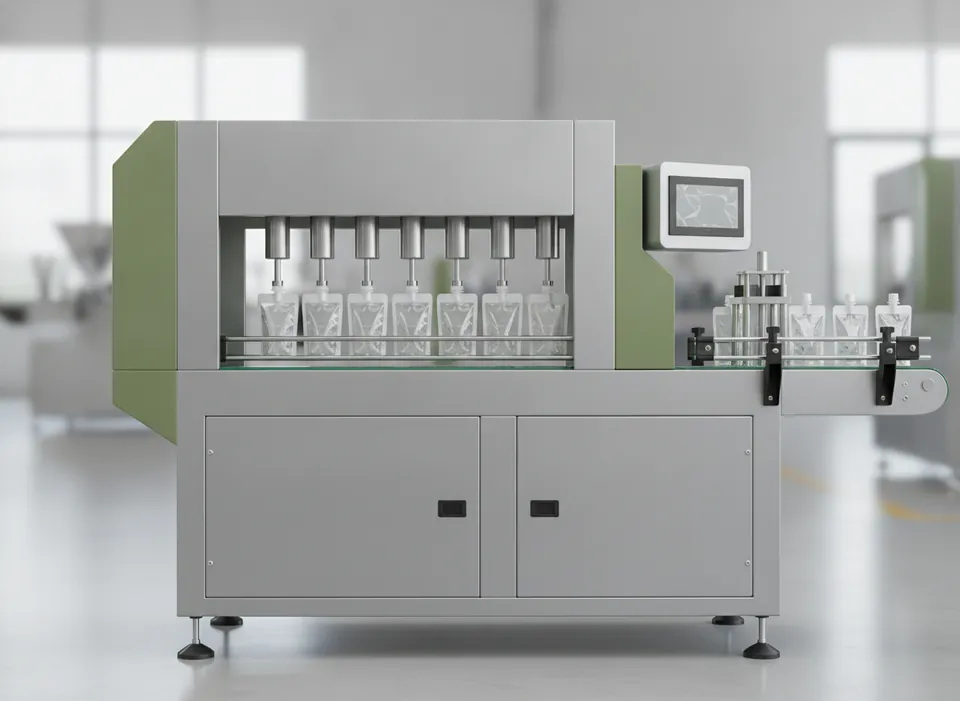

Spout Pouch Filling & Capping Machine
Fills through the spout and caps on the same machine.
Built around your product
Spouted pouches hang on rails by their fitments, index under filling nozzles and move straight to capping. It is used for purees, drinks, sauces and liquid detergents.
A vertical form-fill-seal machine pulls film over a forming collar to create a tube, seals the back and bottom, drops in the dose and seals the top while cutting the pack free. Rotary premade-pouch machines grip finished pouches and carry them through open, fill and seal stations. Flow wrappers do the same job horizontally for solid items.
Key features
- 2–8 filling heads
- Vibratory cap feeder with torque capping
- Nitrogen flush before capping
- CIP-ready product path
Process sequence
Unwind
Film is unwound, tension-controlled and registered to the print mark.
Code
A TTO or laser prints date and lot on the moving web.
Form
The pouch is formed around a tube, or a premade pouch is opened.
Dose
A multihead weigher, auger or pump delivers the product.
Seal
Heated jaws seal and cut; packs discharge to the outfeed.
Machine video
A closer look at a typical pouch & form-fill-seal installation. Ask us for a live demonstration of the FP-SP2 on your own product.
Specifications
| Model | FP-SP2 |
|---|---|
| Bag style | Spout pouch, centre or corner spout |
| Bag size | 50–2,000 ml pouches, spout Ø 8.6–20 mm |
| Fill range | 50–2,000 ml |
| Speed | Up to 40 pouches/min (2 heads) |
| Packaging material | Premade spouted pouches |
| Dosing system | Servo piston or flowmeter |
| Power | 380 V, 3 kW |
| Air consumption | 0.4 m³/min at 6 bar |
Typical configuration. Final values depend on your product and are confirmed in the quotation.
Add-ons
- Multihead weigher, auger or liquid pump
- Nitrogen flushing
- Zipper, valve or spout applicators
- Checkweigher and metal detector at outfeed
Suitable materials and packs
Questions
VFFS or premade pouch?
Which coder fits a form-fill-seal machine?
What decides the speed?
Get a proposal for this machine
- Application review by an engineer — material, code and line speed
- Trial marking, printing or packing on your own samples
- Quotation with layout, lead time, installation and service
Prefer to talk? Email info@motionworksrobotics.com or call +91 98100 93680.
