Semi-Automatic Strapping Machine
Table-top PP strapping for cartons and bundles.
Built around your product
Place the pack on the table, loop the strap and insert it into the slot. The machine tensions, heat-seals and cuts in about two seconds.
A strapping head feeds strap around the pack through an arch or by hand, tensions it, welds the ends by heat or friction and cuts. Stretch wrappers rotate the load on a turntable — or rotate an arm around a stationary load — while a powered carriage pre-stretches the film by 200–300% and travels up and down the mast to apply the programmed number of wraps.
Key features
- Fast heater warm-up
- Motor stops automatically when idle
- Open or closed cabinet, stainless option
- Castors for moving between stations
Process sequence
Position
The pack stops under the arch, or the pallet is placed on the turntable.
Feed
Strap or film is fed and attached.
Tension
Strap is pulled to the set force; film is pre-stretched.
Seal
Strap ends are welded; film is cut and wiped down.
Release
The secured load moves on to labelling and dispatch.
Machine video
A closer look at a typical strapping & pallet wrapping installation. Ask us for a live demonstration of the ST-600 on your own product.
Specifications
| Model | ST-600 |
|---|---|
| Type | Semi-automatic table strapper |
| Pack / load size | Min. 60 × 30 mm, no maximum |
| Speed | About 2 s per strap |
| Strap / film | PP, 6–15 mm wide |
| Tension | 10–450 N adjustable |
| Control | Electronic board with tension dial |
| Power supply | 220 V single phase, 0.3 kW |
| Weight | 85 kg |
Typical configuration. Final values depend on your product and are confirmed in the quotation.
Add-ons
- Powered roller table
- Top-sheet dispenser
- Top press for light loads
- Integrated pallet weigh scale
Suitable materials and packs
Questions
PP or PET strap?
Turntable or rotary arm?
How much film does pre-stretch save?
Get a proposal for this machine
- Application review by an engineer — material, code and line speed
- Trial marking, printing or packing on your own samples
- Quotation with layout, lead time, installation and service
Prefer to talk? Email info@motionworksrobotics.com or call +91 98100 93680.
Ask about this machine
More strapping & pallet wrapping machines
Automatic Arch Strapping Machine
One-touch or sensor-triggered strapping through an arch.

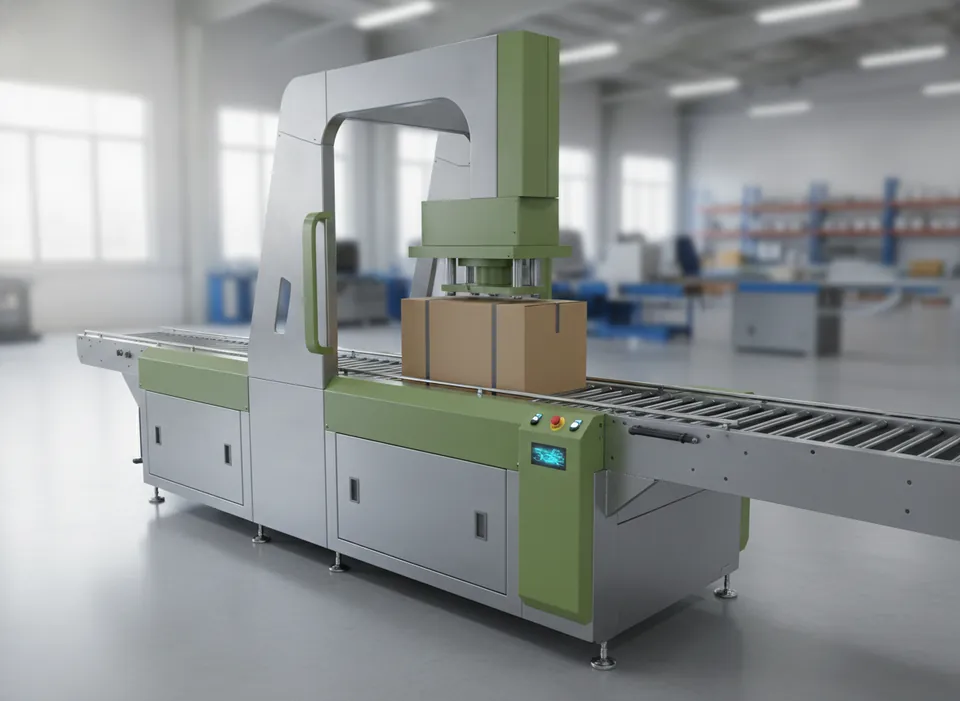

Inline Fully Automatic Strapping Machine with Press
Hands-free strapping in conveyor lines.

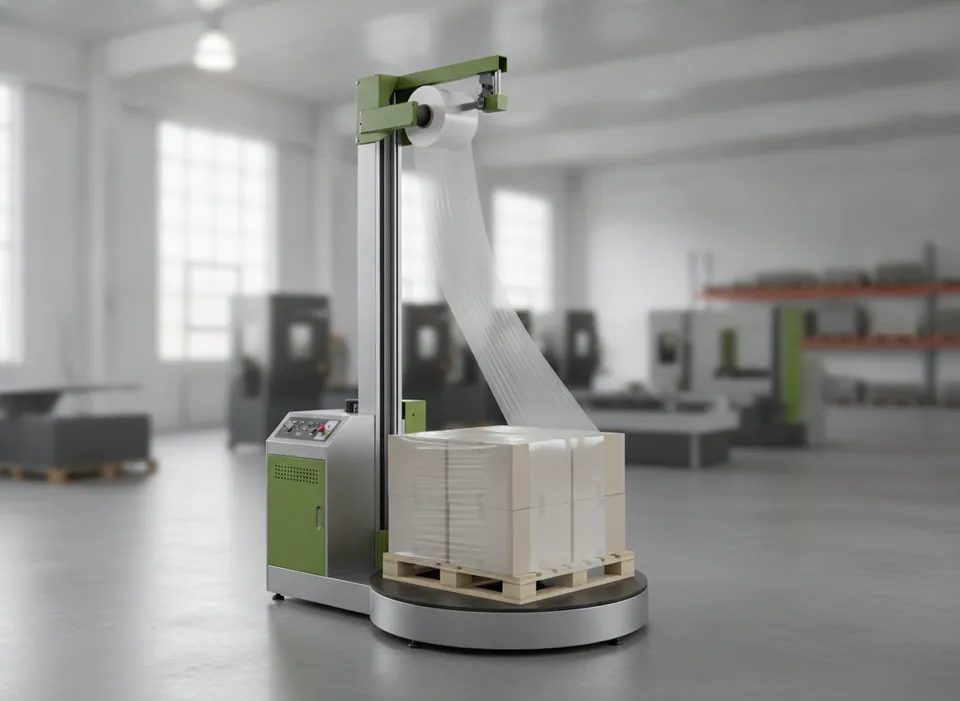

Turntable Pallet Stretch Wrapper
