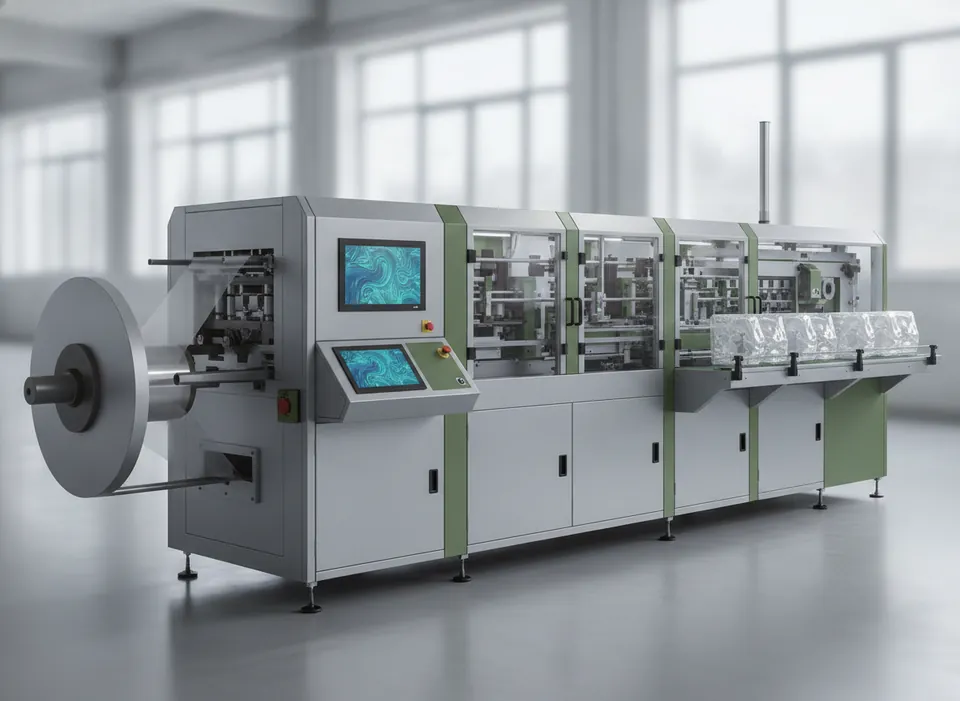

Thermoforming Packaging Machine
Forms, fills, seals and cuts packs from two film reels.
Built around your product
Bottom film is heated and formed into pockets, loaded, covered with top film under vacuum or gas and cut into finished packs. Rollstock gives the lowest material cost for volume production.
Continuous band sealers carry the bag mouth between heated bars and cooling blocks while a conveyor supports the bag. Chamber machines evacuate air around the product, optionally back-flush with gas, then seal. Tray sealers and thermoformers use a tool to seal top film to a tray or formed pocket and trim it to shape.
Key features
- Flexible or rigid film
- Servo chain index
- Cross and longitudinal cutting
- Traversing TTO or laser across lanes
Process sequence
Load
Filled bags or trays are placed on the conveyor or in the chamber.
Evacuate
Vacuum pumps remove air to the set level (vacuum and MAP models).
Flush
Protective gas is injected where modified atmosphere is used.
Seal
Heat, pressure and dwell time fuse the sealing layers.
Cool & code
Seals are cooled and a date code is embossed or printed.
Machine video
A closer look at a typical sealing & vacuum packaging installation. Ask us for a live demonstration of the SV-TF420 on your own product.
Specifications
| Model | SV-TF420 |
|---|---|
| Type | Rollstock thermoformer (vacuum, MAP or skin) |
| Seal size | Film width 320–420 mm, forming depth to 120 mm |
| Speed / cycle | 6–12 cycles/min |
| Chamber / tray size | Index 200–400 mm |
| Pump / heater | 100–200 m³/h pump |
| Construction | 304 stainless steel, washdown |
| Power supply | 380 V three phase, 12 kW |
| Weight | 1,400 kg |
Typical configuration. Final values depend on your product and are confirmed in the quotation.
Add-ons
- Gas flush (MAP)
- Emboss or ink date coding on the seal
- Nitrogen-flush band sealing
- Stainless washdown build
Suitable materials and packs
Questions
What is MAP?
Which films can a band sealer handle?
Single or double chamber?
Get a proposal for this machine
- Application review by an engineer — material, code and line speed
- Trial marking, printing or packing on your own samples
- Quotation with layout, lead time, installation and service
Prefer to talk? Email info@motionworksrobotics.com or call +91 98100 93680.
