5 W UV Laser Coder
The all-round UV coder for pharma, cosmetics and electronics.
Built around your product
A balanced choice of speed and fine detail. The UV-5 writes dense DataMatrix codes on cartons and labels, marks medical tubing and syringes, and codes chip packages and connectors without thermal stress.
An infrared beam is frequency-tripled inside the laser cavity to produce ultraviolet light, then delivered through a galvo scan head. The small spot size gives very fine characters and dense 2D codes. Because the heat-affected zone is minimal, UV is the usual choice for white HDPE, flexible film, medical tubing, cable jackets, glass and chip packages.
Key features
- Fine 15 µm line width for micro-codes
- Serialisation-ready with data buffer
- Marks glass without micro-cracking
- Optional coaxial vision alignment
Process sequence
Position
Product is presented on the conveyor, in a tray or on a fixture.
Focus
A fixed or motorised Z-axis sets the focal distance for the part height.
Mark
The 355 nm beam changes the surface colour without cutting into it.
Extract
Light fume extraction keeps the lens and product clean.
Inspect
An optional vision system grades the code before the part moves on.
Machine video
A closer look at a typical uv laser marking installation. Ask us for a live demonstration of the UV-5 on your own product.
Specifications
| Model | UV-5 |
|---|---|
| Laser source | DPSS UV, frequency-tripled |
| Average power | 5 W |
| Wavelength | 355 nm |
| Marking field | 110 × 110 mm (optional 175 × 175 mm) |
| Minimum line width | 0.015 mm |
| Max line speed | 150 m/min |
| Cooling | Air (water optional) |
| Protection rating | IP54 |
Typical configuration. Final values depend on your product and are confirmed in the quotation.
Add-ons
- Motorised Z-axis with autofocus
- XY gantry for tray and batch marking
- Coaxial camera for mark-on-target alignment
- Chiller for higher-power water-cooled sources
Suitable materials and packs
Questions
Why choose UV over fiber for plastics?
Can UV lasers mark flexible packaging film?
How much power do I need?
Get a proposal for this machine
- Application review by an engineer — material, code and line speed
- Trial marking, printing or packing on your own samples
- Quotation with layout, lead time, installation and service
Prefer to talk? Email info@motionworksrobotics.com or call +91 98100 93680.
Ask about this machine
More uv laser marking machines

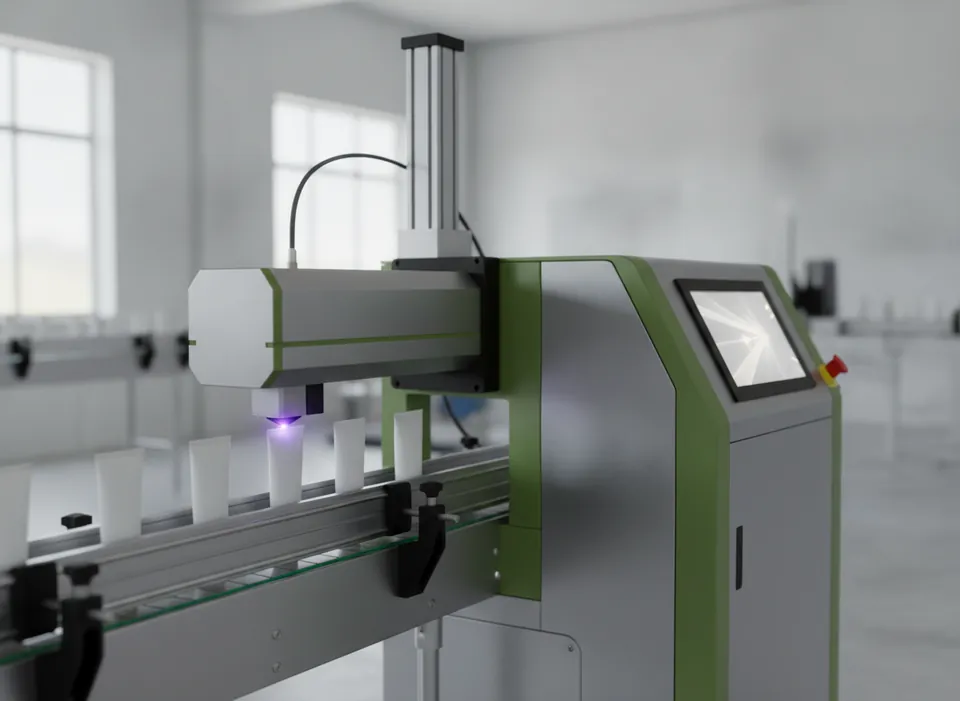

3 W UV Laser Coder
Entry UV coder for plastics, films and labels at moderate speeds.

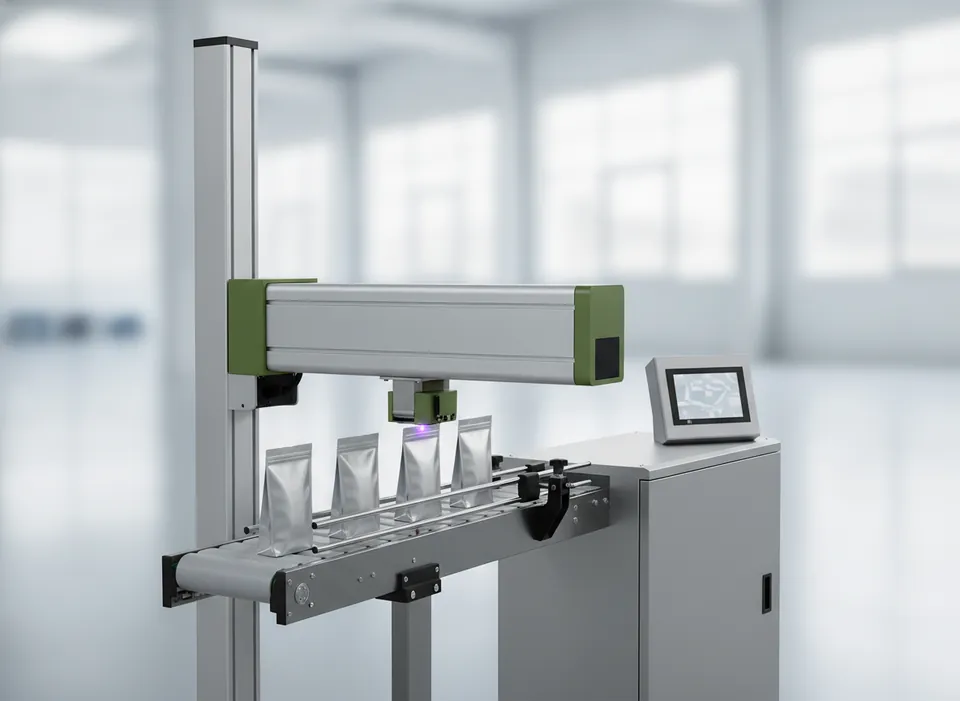

10 W High-Speed UV Laser Coder
High-speed UV coding for film, closures and extrusion lines.

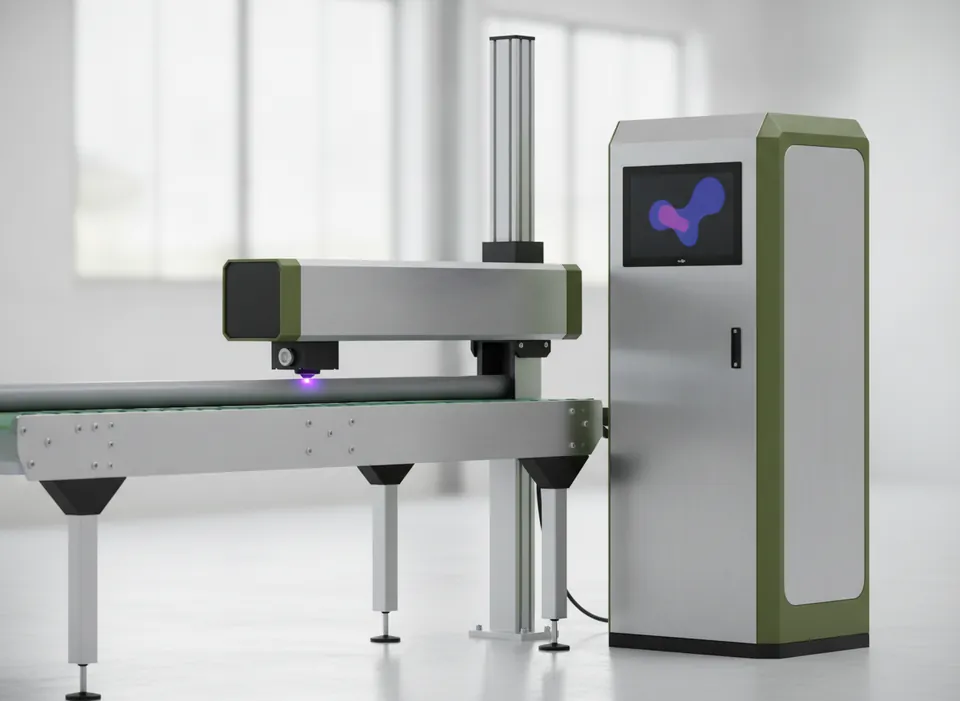

15 W UV Laser Coder for Film & Extrusion
