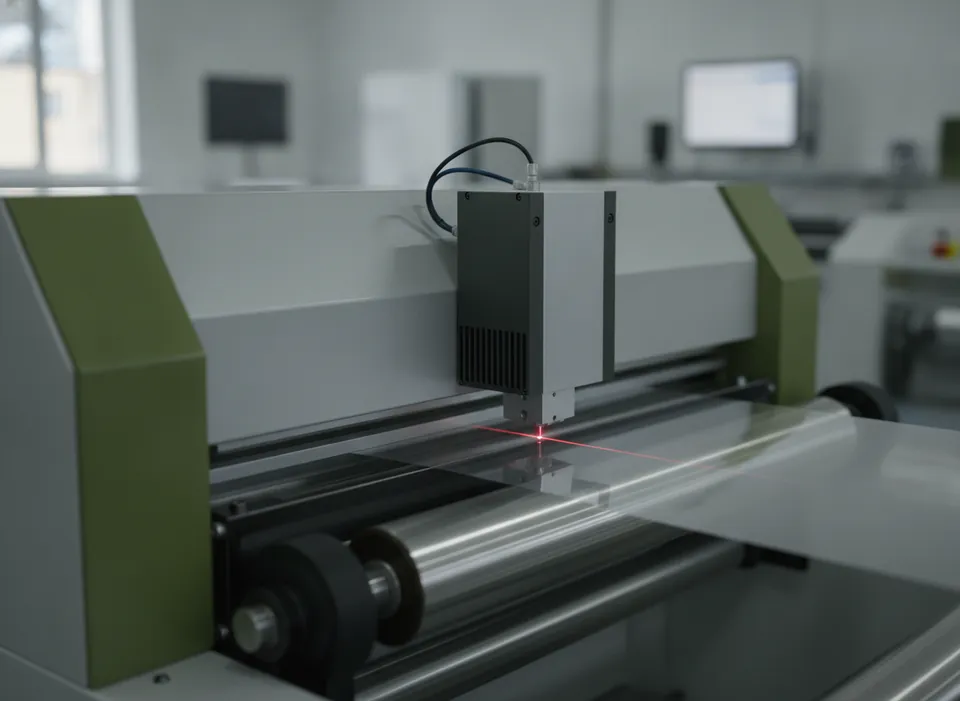

100 W CO2 Laser Scoring & Perforating System
Easy-open scoring and micro-perforation for flexible film.
Built around your product
Beyond coding, the CL-G100 converts film. It scores a controlled depth into laminate layers for easy-tear opening and drills micro-perforations for modified-atmosphere produce packs, registered to the print.
An RF-excited sealed tube generates the beam, and a galvo scan head writes characters as continuous vector strokes. Choosing the wavelength matters: 10.6 µm suits paper, board, glass and wood; 9.3 µm gives a clean frosted mark on PET bottles; 10.2 µm works well on laminated cartons and coated films.
Key features
- Depth-controlled scoring without breaking the barrier
- Micro-perforation for breathable packs
- Print-mark registration
- Mounts on slitters, rewinders and pouch makers
Process sequence
Trigger
A sensor detects each pack; the encoder supplies line speed.
Compose
The controller builds the message from real-time date, shift and counter data.
Scribe
The scan head writes the code while the product keeps moving.
Extract
A fume extractor captures ablated ink and dust.
Confirm
A code reader or OCR camera checks presence and legibility.
Machine video
A closer look at a typical co2 laser marking installation. Ask us for a live demonstration of the CL-G100 on your own product.
Specifications
| Model | CL-G100 |
|---|---|
| Laser tube | Sealed RF-excited CO2 |
| Average power | 100 W |
| Wavelength | 10.6 µm (10.2 µm optional) |
| Marking field | Up to 350 mm web per head |
| Characters per second | Process dependent |
| Max line speed | 300 m/min |
| Cooling | Water chiller |
| Protection rating | IP54 |
Typical configuration. Final values depend on your product and are confirmed in the quotation.
Add-ons
- Choice of 9.3, 10.2 or 10.6 µm tube
- IP65 washdown head for wet filling halls
- Beam delivery extensions and 90° turning units
- Dual-head controller for two lanes
Suitable materials and packs
Questions
Which wavelength should I use on PET bottles?
Can CO2 lasers mark bare metal?
How long does a CO2 tube last?
