30 W CO2 Laser Coder
The standard CO2 laser for FMCG coding.
Built around your product
A versatile 30 W coder for folding cartons, labels, PET, glass and rubber. The CL-30 handles multi-line codes, logos and 2D codes on lines running up to several hundred products a minute.
An RF-excited sealed tube generates the beam, and a galvo scan head writes characters as continuous vector strokes. Choosing the wavelength matters: 10.6 µm suits paper, board, glass and wood; 9.3 µm gives a clean frosted mark on PET bottles; 10.2 µm works well on laminated cartons and coated films.
Key features
- Three wavelength options to match the substrate
- Lens choices for small or wide marking fields
- Beam-turning units for difficult mounting
- Remote web interface
Process sequence
Trigger
A sensor detects each pack; the encoder supplies line speed.
Compose
The controller builds the message from real-time date, shift and counter data.
Scribe
The scan head writes the code while the product keeps moving.
Extract
A fume extractor captures ablated ink and dust.
Confirm
A code reader or OCR camera checks presence and legibility.
Machine video
A closer look at a typical co2 laser marking installation. Ask us for a live demonstration of the CL-30 on your own product.
Specifications
| Model | CL-30 |
|---|---|
| Laser tube | Sealed RF-excited CO2 |
| Average power | 30 W |
| Wavelength | 10.6 µm (9.3 / 10.2 µm optional) |
| Marking field | 100 × 100 mm (optional 200 × 200 mm) |
| Characters per second | Up to 1,300 |
| Max line speed | 180 m/min |
| Cooling | Air |
| Protection rating | IP54 (IP65 optional) |
Typical configuration. Final values depend on your product and are confirmed in the quotation.
Add-ons
- Choice of 9.3, 10.2 or 10.6 µm tube
- IP65 washdown head for wet filling halls
- Beam delivery extensions and 90° turning units
- Dual-head controller for two lanes
Suitable materials and packs
Questions
Which wavelength should I use on PET bottles?
Can CO2 lasers mark bare metal?
How long does a CO2 tube last?
Get a proposal for this machine
- Application review by an engineer — material, code and line speed
- Trial marking, printing or packing on your own samples
- Quotation with layout, lead time, installation and service
Prefer to talk? Email info@motionworksrobotics.com or call +91 98100 93680.
Ask about this machine
More co2 laser marking machines

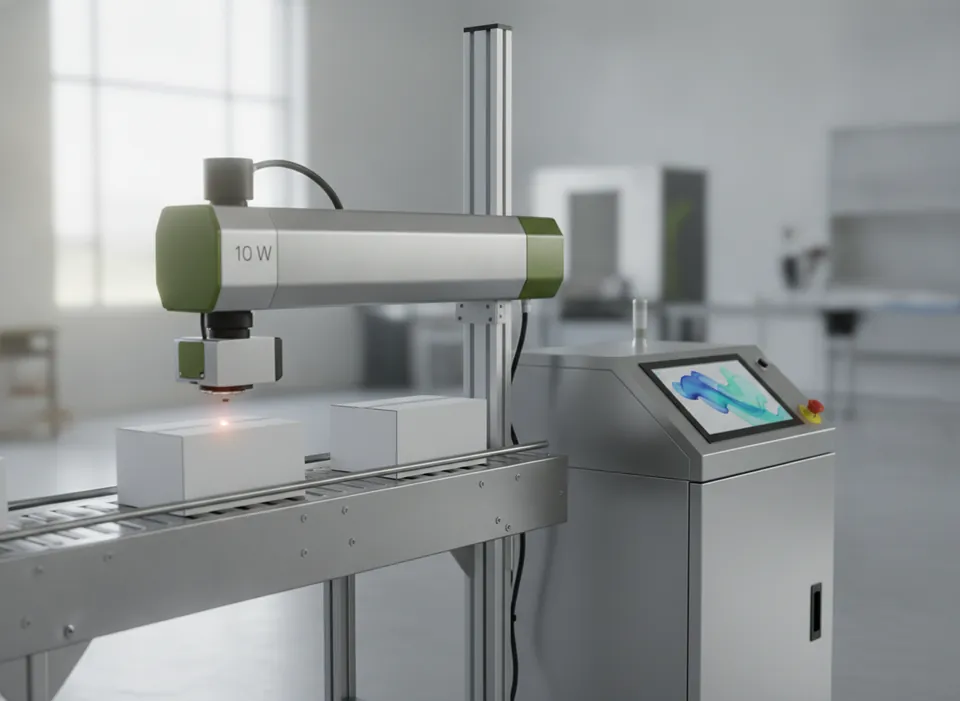

10 W CO2 Laser Coder
Economical CO2 coder for cartons, labels and paper sleeves.

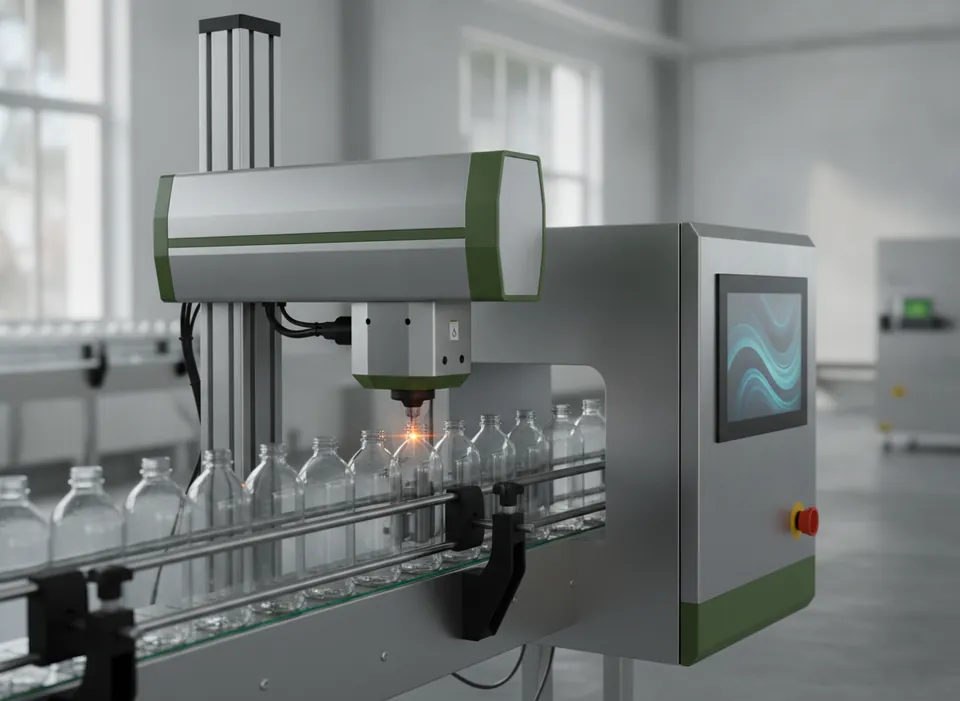

60 W High-Speed CO2 Laser Coder
Power and speed for beverage, dairy and tobacco lines.

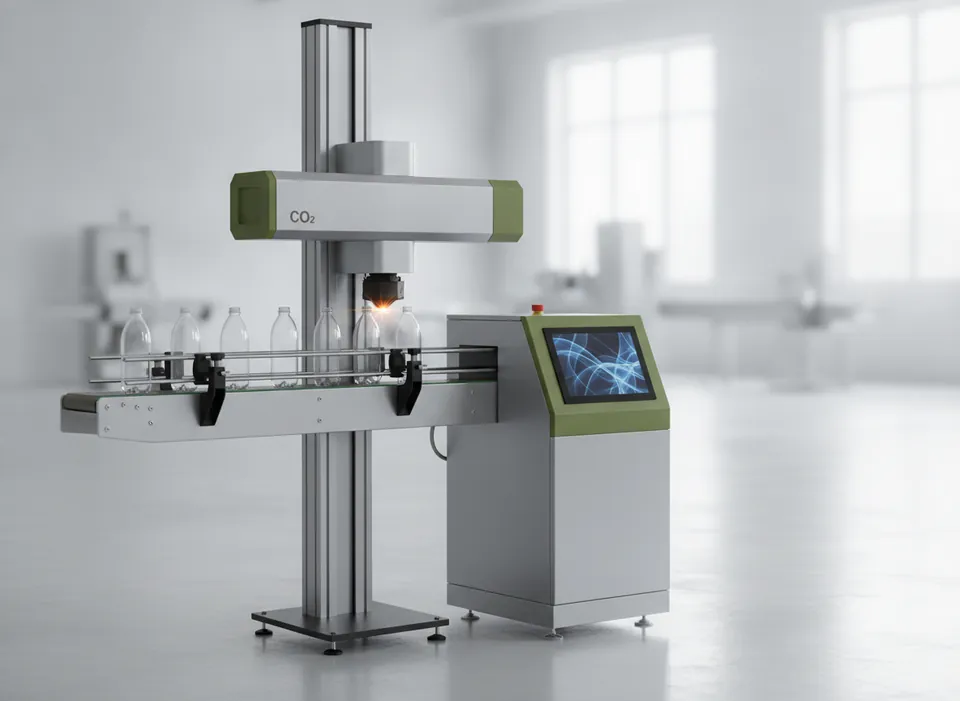

9.3 µm CO2 Laser Coder for PET Bottles
