Entry-Level CIJ Printer
Straightforward date and batch coding for single-shift lines.
Built around your product
The CJ-310 covers everyday coding — up to three lines of text on bottles, pouches and cartons — with sealed ink cartridges and an automatic start-up and shut-down routine that keeps the printhead clean.
Ink is pumped under pressure through a nozzle and broken into a steady stream of droplets by a piezo crystal. Selected drops receive an electrical charge and are deflected by a high-voltage plate onto the product to form characters; uncharged drops return to the gutter and are recycled. Solvent make-up keeps viscosity constant across temperature changes.
Key features
- Mistake-proof sealed cartridges
- Automatic printhead clean on start and stop
- 7-inch touchscreen with WYSIWYG editor
- Compact stainless cabinet
Process sequence
Start
Automatic nozzle flush and jet alignment bring the printer to ready.
Sense
A product sensor triggers the print; the encoder matches character width to speed.
Charged drops fly 5–15 mm to the surface and dry in about a second.
Recycle
Unused ink returns through the gutter to the mixing tank.
Shut down
The printhead cleans and seals itself for a clean next start.
Machine video
A closer look at a typical continuous inkjet (cij) installation. Ask us for a live demonstration of the CJ-310 on your own product.
Specifications
| Model | CJ-310 |
|---|---|
| Print lines | 1–3 |
| Character height | 1.5–10 mm |
| Max line speed | 180 m/min (single line) |
| Nozzle size | 60 µm |
| Ink types | MEK and ethanol dye inks |
| Umbilical length | 2 m |
| Protection rating | IP55 |
| Interfaces | USB, digital I/O |
Typical configuration. Final values depend on your product and are confirmed in the quotation.
Add-ons
- Positive-air printhead kit for dusty lines
- Right-angle or extended umbilical
- Beacon and product-reject outputs
- Stainless stand with traversing arm
Suitable materials and packs
Questions
How many lines can a CIJ printer print?
What maintenance does CIJ need?
Can CIJ print on dark surfaces?
Get a proposal for this machine
- Application review by an engineer — material, code and line speed
- Trial marking, printing or packing on your own samples
- Quotation with layout, lead time, installation and service
Prefer to talk? Email info@motionworksrobotics.com or call +91 98100 93680.
Ask about this machine
More continuous inkjet (cij) machines
Mid-Range CIJ Printer
Five-line printing and networking for multi-shift production.

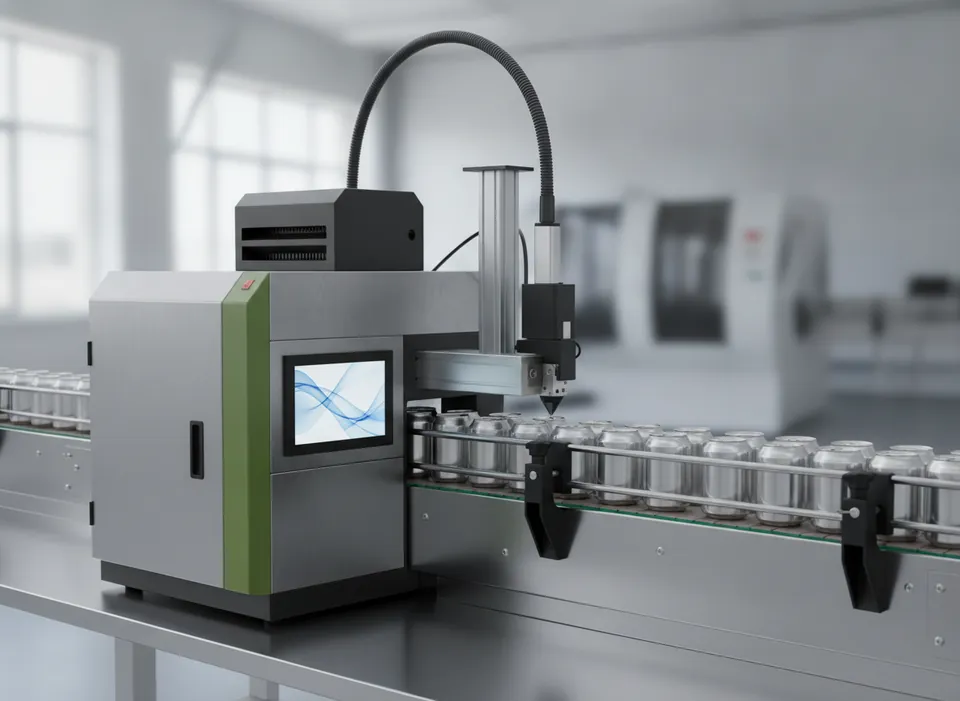

High-Speed CIJ Printer
Built for canning, bottling and extrusion at full speed.

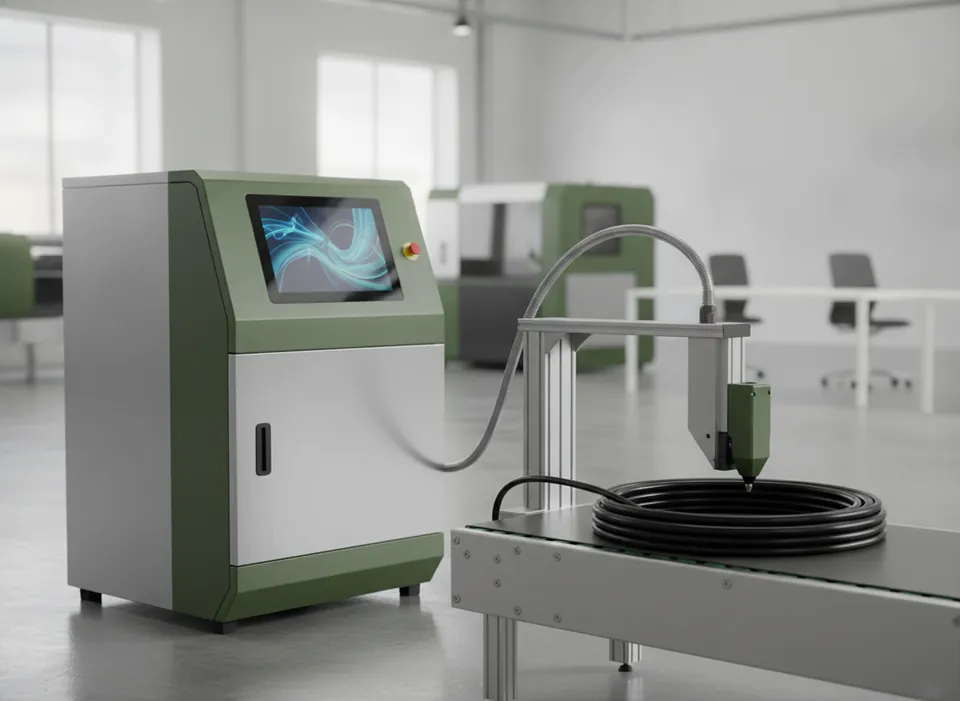

Pigmented-Ink CIJ Printer
