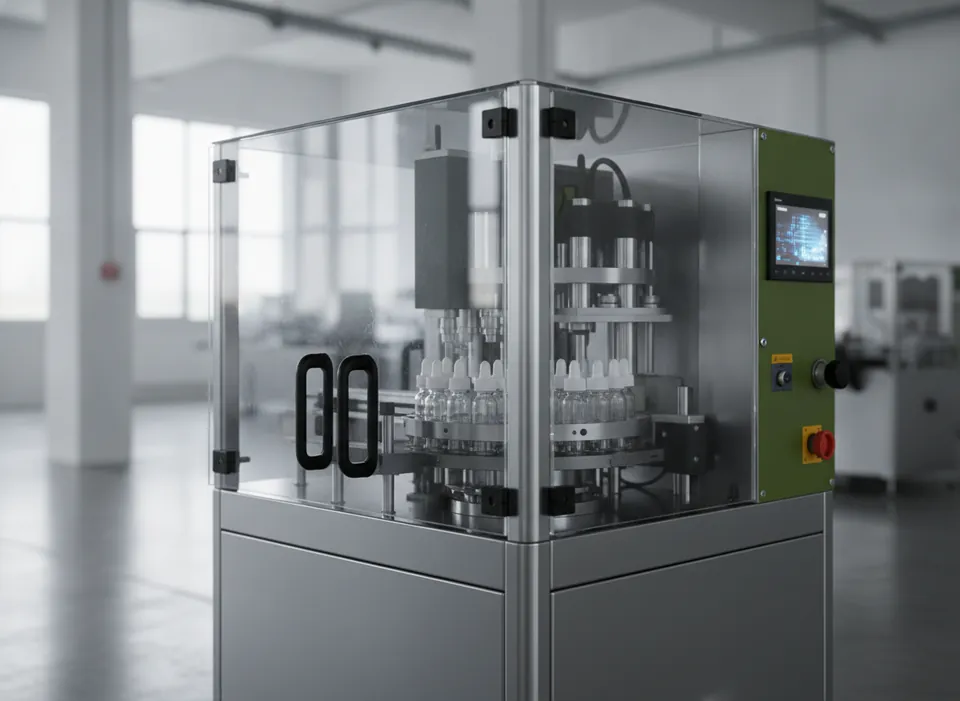

Monoblock Filling, Plugging & Capping Machine
Compact rotary monoblock for small bottles and vials.
Built around your product
One starwheel carries each container through filling, plug insertion and capping. The FC-M3 suits eye-drops, essential oils, e-liquids and serums where footprint and cleanliness matter.
The filling principle follows the product. Piston fillers meter viscous products by cylinder volume. Gravity and overflow fillers suit thin, foaming liquids and give a consistent cosmetic fill level. Auger fillers dose powders by screw rotation. Cappers then place and tighten screw, press-on or pump closures to a set torque.
Key features
- Fill, plug and cap on one frame
- Peristaltic pumps for quick product change
- No-bottle, no-fill, no-cap logic
- Laminar-flow hood optional
Process sequence
Feed
Containers are unscrambled and spaced on the conveyor.
Index
Gates or a starwheel position containers under the nozzles.
Fill
Nozzles dive, dose and retract with anti-drip cut-off.
Cap
Closures are sorted, placed and torqued.
Code
A laser or inkjet coder marks date and lot before labelling.
Machine video
A closer look at a typical filling & capping installation. Ask us for a live demonstration of the FC-M3 on your own product.
Specifications
| Model | FC-M3 |
|---|---|
| Filling principle | Peristaltic or ceramic piston pump |
| Fill range | 2–100 ml |
| Heads | 2 filling heads, 1 plug, 1 cap |
| Output | Up to 60 bottles/min |
| Accuracy | ±1% |
| Container range | Ø 15–50 mm vials and bottles |
| Contact parts | 316L stainless steel, pharma-grade tubing |
| Power / air | 220 V, 2 kW / 6 bar |
Typical configuration. Final values depend on your product and are confirmed in the quotation.
Add-ons
- CIP-ready product path
- Diving and bottom-up fill nozzles
- Cap elevator and sorter
- Nitrogen flush before capping
Suitable materials and packs
Questions
Which filler suits viscous products?
How is fill accuracy expressed?
Can filling and capping be combined?
Get a proposal for this machine
- Application review by an engineer — material, code and line speed
- Trial marking, printing or packing on your own samples
- Quotation with layout, lead time, installation and service
Prefer to talk? Email info@motionworksrobotics.com or call +91 98100 93680.
