Wrap-Around Bottle Labelling Machine
Full or partial wrap labels on round containers.
Built around your product
A conveyor-based labeller for cylindrical bottles, jars and cans. A wrap belt rotates each container against a pressure pad for wrinkle-free application.
A servo or stepper drive pulls the label web past a peel plate so each label releases as the product arrives. Spacing belts, a wrap station or top hold-down keeps the container steady while the label is wiped on. A gap sensor registers each label; a product sensor times the dispense. Coders such as TTO, TIJ or laser can be mounted to print variable data on the label first.
Key features
- Servo dispensing for consistent placement
- Spacing wheel for stable pitch
- Recipe memory for format changes
- Ready for a TTO or laser coder on the head
Process sequence
Space
An infeed wheel or belt separates containers to a set pitch.
Sense
The product sensor triggers the labelling head.
Dispense
The web advances one label over the peel plate at product speed.
Wrap
A belt, brush or roller presses the label around the container.
Discharge
Labelled products leave to the next station or a collection table.
Machine video
A closer look at a typical labeling machines installation. Ask us for a live demonstration of the LB-R100 on your own product.
Specifications
| Model | LB-R100 |
|---|---|
| Label type | Self-adhesive, wrap-around |
| Container range | Ø 20–120 mm round containers |
| Label height | 15–180 mm |
| Speed | Up to 120 containers/min |
| Placement accuracy | ±1 mm |
| Drive | Servo label drive |
| Control | PLC with 7-inch HMI |
| Power supply | 220 V single phase, 1 kW |
Typical configuration. Final values depend on your product and are confirmed in the quotation.
Add-ons
- Clear-label sensor
- Integrated date coder on the labelling head
- Orientation station for handles or seams
- Missing-label detection with reject
Suitable materials and packs
Questions
How accurate is label placement?
Can one machine run round and flat bottles?
What is needed for shrink sleeves?
Get a proposal for this machine
- Application review by an engineer — material, code and line speed
- Trial marking, printing or packing on your own samples
- Quotation with layout, lead time, installation and service
Prefer to talk? Email info@motionworksrobotics.com or call +91 98100 93680.
Ask about this machine
More labeling machines machines

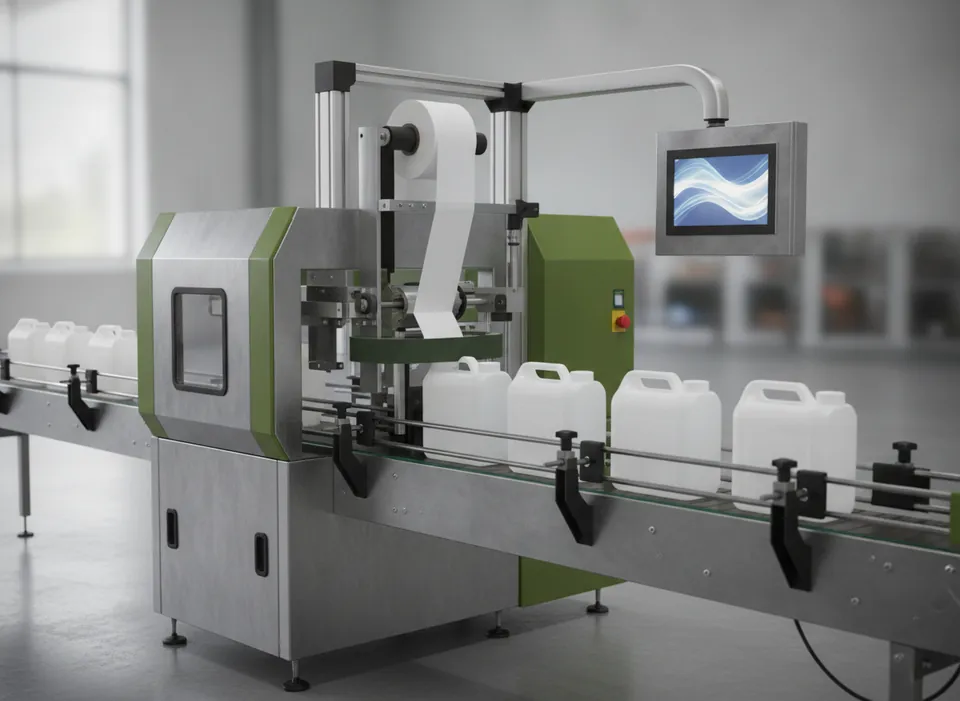

Front & Back Labelling Machine
Two labels in one pass on flat, oval and square bottles.

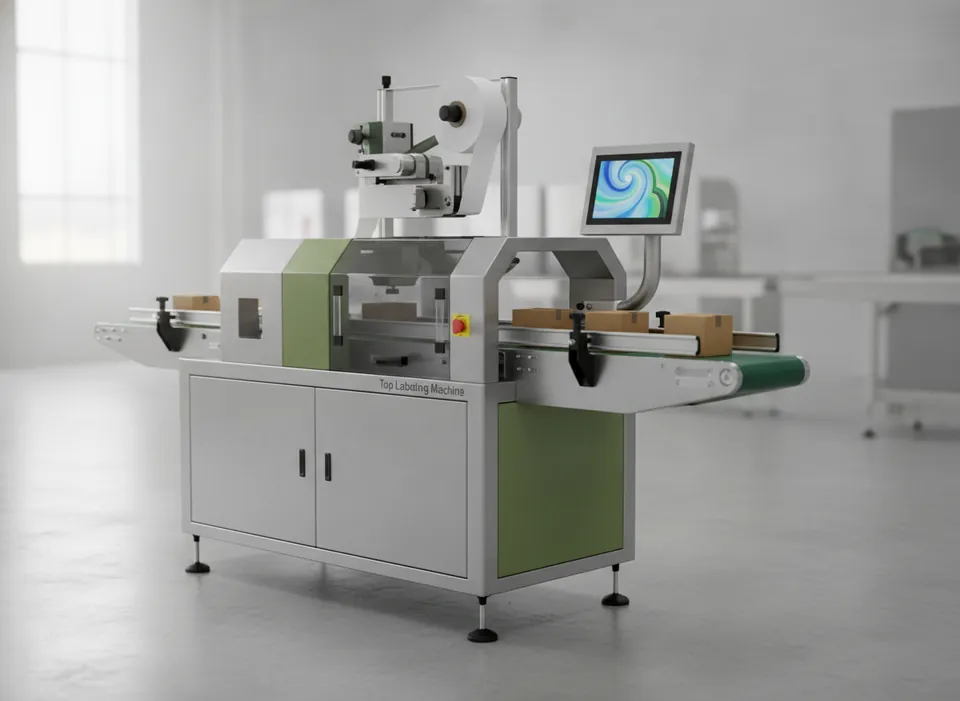

Top Labelling Machine
Flat-surface labelling for cartons, pouches, lids and trays.

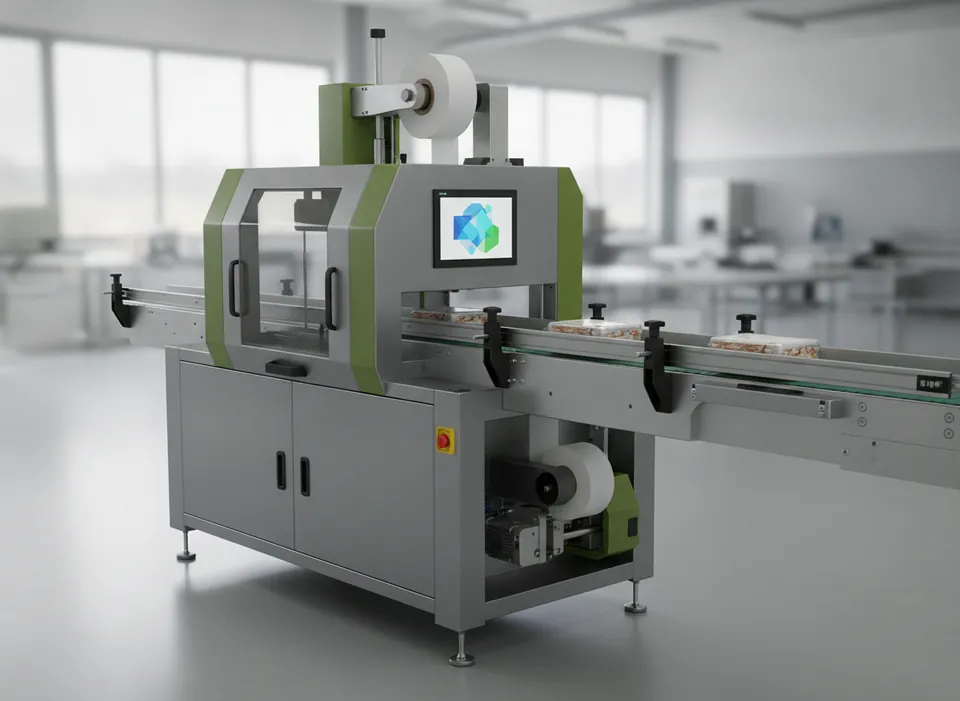

Top & Bottom Labelling Machine
